ELECTRICAL, IGNITION SYSTEM
5

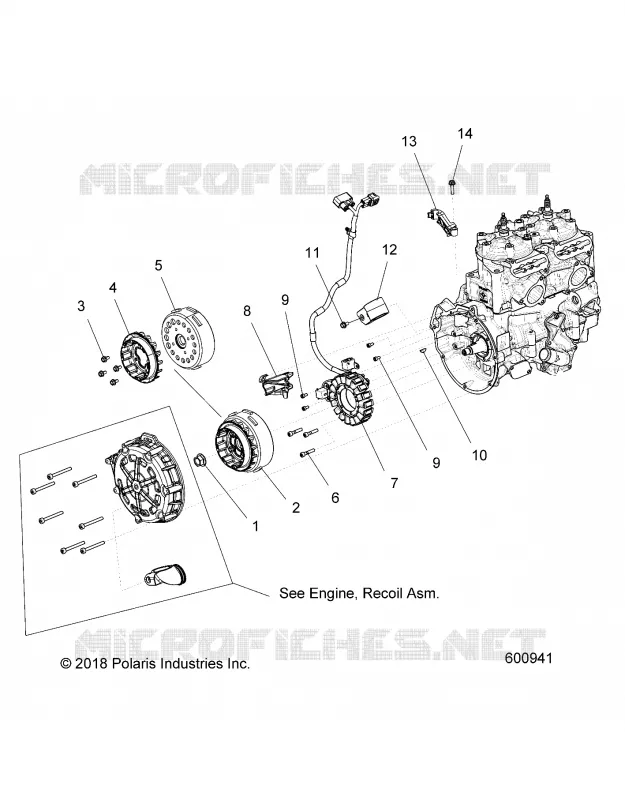

Parts Diagram
Parts Catalog
CYLINDER, CYL. HEAD
by
SUSPENSION, FRONT TORQUE ARM
ELECTRICAL, IGNITION SYSTEM
1
NUT-FLANGE M14X1.50 -D
7518299
$9,44 Unit Price incl. VAT
2
ASM-FLYWHEEL/PULLEY 119MM [INCL.3-5]
1205812
$1 007,99 Unit Price incl. VAT
3
SCREW
7517278
$10,49 Unit Price incl. VAT
4
PULLEY-STARTER RECOIL
3023638
$99,74 Unit Price incl. VAT
5
FLYWHEEL-PBR RE 119MM
4017455
$901,94 Unit Price incl. VAT
6
SCR-M6X1.0X32 12.9 TORX
7520893
$15,74 Unit Price incl. VAT
7
STATOR
4017454
$808,49 Unit Price incl. VAT
8
RETAINER-STATOR WIRE
5455085
$23,09 Unit Price incl. VAT
9
SCREW-M5X0.8X10 SOC/CP-D
7517847
$5,76 Unit Price incl. VAT
10
KEY WOODRUFF
7721117
$47,24 Unit Price incl. VAT
11
SCR-HXFL-M6X1.0X12 8.8 ZOD P30
7519145
$7,34 Unit Price incl. VAT
12
SUPPORT-HOSE
5416524
$62,99 Unit Price incl. VAT
13
RETAINER-STATOR WIRE
5455321
$23,09 Unit Price incl. VAT
14
SCR-HXFL-M6X1.0X25 8.8 ZPB
7517751
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
