1
Engine displacement
850
2
Year
2020
3
Trim
850 AXYS SKS 155
4
Parts Catalog

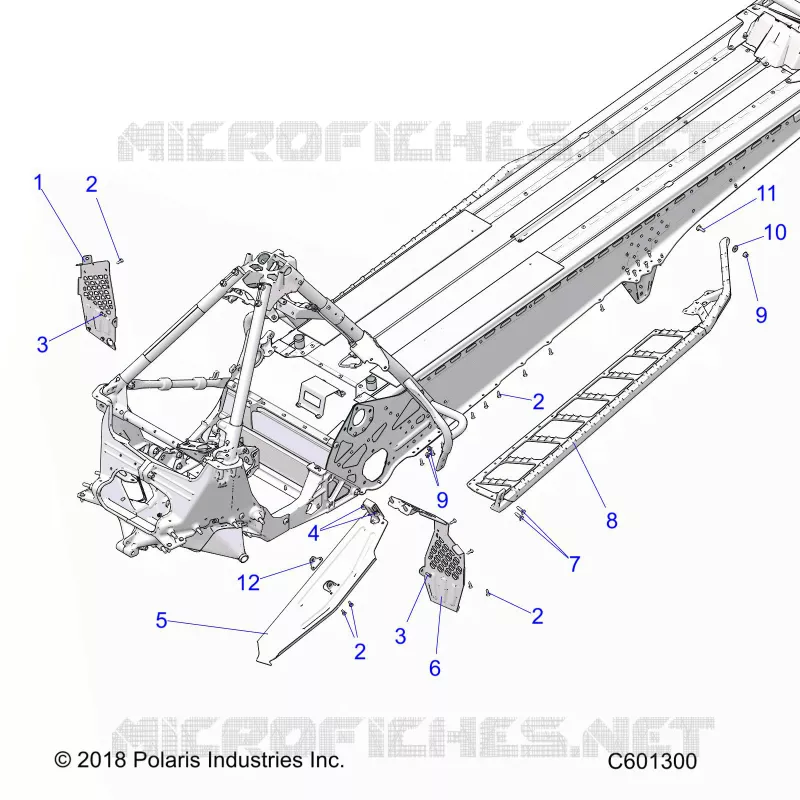

CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNING BOARDS
5
Parts Diagram
Parts Catalog
STARTER MOTOR
by
ENGINE, THROTTLE CONTROL ASM.
CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNING BOARDS
1
2
2
2
2
3
3
3
3
4
5
6
7
8
8
8
8
8
8
8
8
8
8
8
8
9
9
10
11
12
1
ASM. TOE STOP RH
1024947
1025683
$120,74 Unit Price incl. VAT
2
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
3
CAPLUG [QUICKDRIVE MODELS ONLY]
7080936
$5,24 Unit Price incl. VAT
3
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
$2,09 Unit Price incl. VAT
4
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
5
ASM. GUARD CLUTCH [INCL. 2 13]
1023403
$115,49 Unit Price incl. VAT
6
ASM. TOE STOP LH
1020099
$120,74 Unit Price incl. VAT
7
SCR-RHCAR-M6X1.0X22 8.8 ZPC
7519338
$6,29 Unit Price incl. VAT
8
ASM-RUNNINGBOARD LH GGREY
1023199728
$384,29 Unit Price incl. VAT
8
ASM-RUNNINGBOARD RH GGREY
1023200728
$384,29 Unit Price incl. VAT
8
ASM-RUNNINGBOARD LH IND SKY BLUE
1023199737
$430,49 Unit Price incl. VAT
8
ASM-RUNNINGBOARD LH MDNTBLUE
1023199485
$488,24 Unit Price incl. VAT
8
ASM-RUNNINGBOARD RH MDNTBLUE
1023200485
$488,24 Unit Price incl. VAT
8
ASM-RUNNNINGBOARD RH INDY RED [COLOR OPTON]
1023200293
$430,49 Unit Price incl. VAT
8
ASM. RUNNNINGBOARD RH NATURAL [COLOR OPTON]
1023200
$383,24 Unit Price incl. VAT
8
ASM-RUNNINGBOARD LH NATURAL [COLOR OPTON]
1023199
$383,24 Unit Price incl. VAT
8
ASM-RUNNNINGBOARD RH IND SKY BLUE
1023200737
$430,49 Unit Price incl. VAT
8
ASM-RUNNINGBOARD LH BLACK [COLOR OPTON]
1023199067
$430,49 Unit Price incl. VAT
8
ASM-RUNNNINGBOARD RH BLACK [COLOR OPTON]
1023200067
$430,49 Unit Price incl. VAT
8
ASM-RUNNINGBOARD LH INDY RED [COLOR OPTON]
1023199293
$430,49 Unit Price incl. VAT
9
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
10
WSHR-6.4X18.0X1.6 ZPB
7556064
$9,44 Unit Price incl. VAT
11
SCR-RHCARM6X1.0X20 8.8 ZOD
7518994
$6,29 Unit Price incl. VAT
12
BRKT. OIL BOTTLE
5262013
$115,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
