GEARCASE SCRAMBLER W957840 (4927252725C009)
5
Parts Diagram
Parts Catalog
REAR BRAKE SCRAMBLER W957840 (4927252725C004)
by
TOOL KIT ASSEMBLY SCRAMBLER W957840 (4927252725C011)

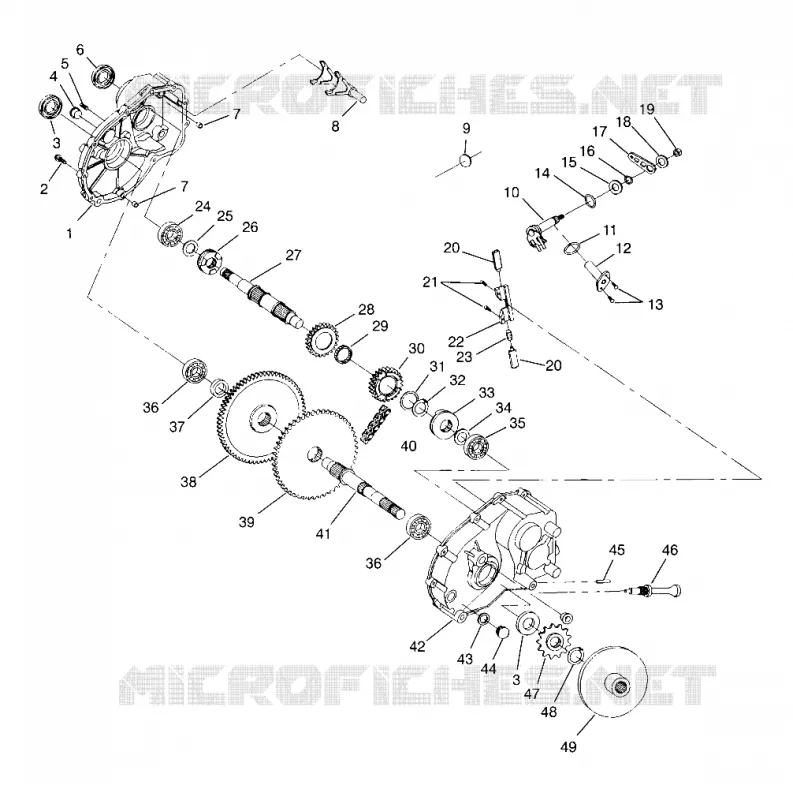

GEARCASE SCRAMBLER W957840 (4927252725C009)
-
1
2
3
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48
49
-
GEARCASE ASM (SCRAMBLER) (Incl. 1-49)
1341140
Not Available
1
GEARCASE LH.
3233095
$383,24 Unit Price incl. VAT
2
SCREW
3233026
$12,59 Unit Price incl. VAT
3
SEAL Substituted by 3233248
3233096
3233788
$57,74 Unit Price incl. VAT
4
BUSHING PIVOT
3233024
Not Available
5
STUD
3233025
Not Available
6
SEAL Substituted by 3233248
3233097
3233788
$57,74 Unit Price incl. VAT
7
PIPE KNOCK
3233021
Not Available
8
RAIL SHIFT ASM.
3233098
Not Available
9
PLUG
3233178
Not Available
10
SHAFT SHIFT/BUTTON ASM.
3233188
Not Available
11
O-RING
3233192
Not Available
12
PLUNGER ASM.
3233186
$85,88 Unit Price incl. VAT
13
SCREW
3233193
Not Available
14
O-RING
3233179
Not Available
15
WASHER
3233119
Not Available
16
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
17
BELLCRANK HI/REV
3233155
Not Available
18
WASHER
3233054
$12,59 Unit Price incl. VAT
19
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
20
PIN
3233031
$51,44 Unit Price incl. VAT
21
SCREW Substituted by 3233747
3233033
Not Available
22
BRACKET
3233030
$34,32 Unit Price incl. VAT
23
SPRING
3233189
Not Available
24
BEARING
3233019
$54,59 Unit Price incl. VAT
25
WASHER
3233099
Not Available
26
DOG REV.ENGAGE.
3233180
Not Available
27
SHAFT INPUT
3233181
Not Available
28
GEAR REVERSE
3233182
Not Available
29
BEARING NEEDLE 25 X 29 X 10
3233103
$54,59 Unit Price incl. VAT
30
SPKT 19T FWD.
3233183
Not Available
31
WASHER
3233105
$13,64 Unit Price incl. VAT
32
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
33
DOG FWD.ENGAGE.
3233184
Not Available
34
WASHER
3233007
Not Available
35
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
36
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
37
WASHER
3233108
Not Available
38
GEAR 65T
3233109
Not Available
39
SPROCKET 51T
3233121
Not Available
40
CHAIN SILENT 60P
3233111
$141,74 Unit Price incl. VAT
41
SHAFT OUTPUT
3233190
Not Available
42
GEARCASE RH
3233187
Not Available
43
Washer
3233035
Not Available
44
PLUG Substituted by 3233448
3233114
$41,99 Unit Price incl. VAT
45
VENT
3233037
Not Available
46
DIPSTICK Substituted by 3233478
3233115
$52,49 Unit Price incl. VAT
47
Sprocket 13T
3221041
$83,99 Unit Price incl. VAT
48
RING RETAINING(10) Substituted by 7710434
3233047
7710434
$7,34 Unit Price incl. VAT
49
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
