1
Engine displacement
400
2
Year
1994
3
Trim
400L 6X6 - W948740
4
Parts Catalog

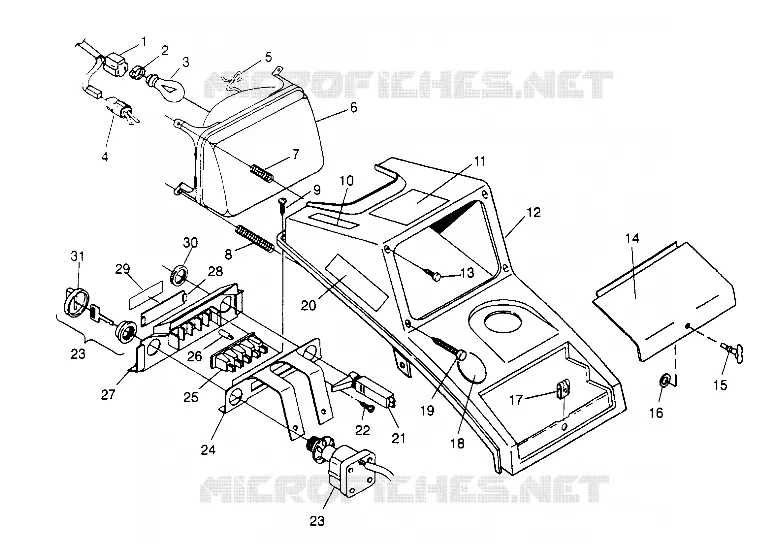

HEADLIGHT ASSEMBLY 6X6 400L W948740 (4926802680A014)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING 6X6 400L W948740 (4926802680A009)
by
AIR BOX 6X6 400L W948740 (4926802680B001)
HEADLIGHT ASSEMBLY 6X6 400L W948740 (4926802680A014)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
21
22
23
23
24
25
26
27
28
29
30
31
1
HARNESS HEADLIGHT
2460424
Not Available
2
COVER SOCKET H/L.
4032066
Not Available
3
BULB H/L
4030028
Not Available
4
HSG DUAL FEMALE
4040024
$6,39 Unit Price incl. VAT
5
RETAINER H/L BULB
4032063
Not Available
6
H/L ASM W/BULBSEAL
4032065
Not Available
7
SPRING-ADJ
4032002
Not Available
8
SPRING ADJ. (Incl. Bulb Lens & Gasket)
4032041
Not Available
9
SCREW(10)
7512017
$9,44 Unit Price incl. VAT
10
DECAL WARN (DEMAND 6 SW.) Substituted by 7074935
7073163
Not Available
11
DECAL CERTIF (6-WHL.)
7074199
Not Available
12
COVER OIL TANK&H/L
5431202132
Not Available
13
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
14
DOOR ACCESS GRAY STG.
5431201132
Not Available
15
FASTENER 1/4 TURN(10)
7670064
$11,01 Unit Price incl. VAT
16
RING SPLIT RETAINER(10)
7670065
$3,66 Unit Price incl. VAT
17
RECEPTACLE CLIP-ON(10)
7670066
$6,81 Unit Price incl. VAT
18
LOGO #40 YEARS#
7074695
Not Available
19
SCREW ADJUST (ATV)(10)
4032042
Not Available
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
21
CABLE CHOKE
7080371
$178,49 Unit Price incl. VAT
22
Screw
7511862
Not Available
23
SWITCH IGNITION (See Footnote Below)
4110140
$257,24 Unit Price incl. VAT
24
BRKT IGN. PANEL
5220965067
Not Available
25
STRIP SOCKET
4032037
$43,56 Unit Price incl. VAT
26
BULB
4030042
4080872
$15,74 Unit Price incl. VAT
27
PANEL IGNITION
5430995
Not Available
28
LENS ASM PILOT LIGHT
2652049
Not Available
29
DECAL PANEL [No Longer Available]
7072528
Not Available
30
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
31
COVER KEY Substituted by 5433534
5431964
5465307
$26,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
