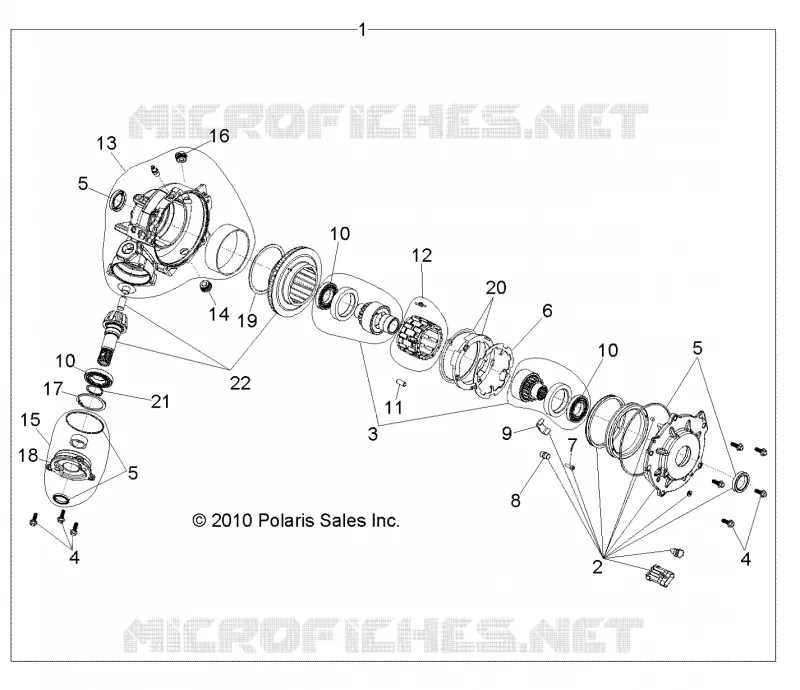

DRIVE TRAIN, FRONT GEARCASE INTERNALS (BUILT 3/05/10 AND AFTER) FOR RANGER 4X4 400 HO - R10RH45AG/AH/AR FROM 2010

DRIVE TRAIN, FRONT GEARCASE INTERNALS (BUILT 3/04/10 AND BEFORE)

DRIVE TRAIN, FRONT GEARCASE INTERNALS (BUILT 3/05/10 AND AFTER)

1

Asm. Front Gearcase [Incl. All][Built 3/05/10 and After]

1332773

$3 008,24 Unit Price incl. VAT

2

ASM. COVER OUTPUT [INCL. CONNECTOR ASSEMBLY OUTPUT COVER PLASTIC CLIP THRUST BUTTON ASM. 4WD COIL THRUST PLATE O-RING GROMMET SCREW OIL SEAL DOWEL PINS HEAT SHRINK TUBING]

3235162

$955,49 Unit Price incl. VAT

3

KIT OUTPUT HUB [INCL. HUB ASM. FEMALE HUB ASM. MALE]

3234936

$860,99 Unit Price incl. VAT

4

Kit Bolt [Incl. 8 Bolts]

3234405

$52,49 Unit Price incl. VAT

5

Kit Seal Repair [Incl. 6 8 22 23]

3234406

$136,49 Unit Price incl. VAT

6

PLATE ARMATURE

3234407

$209,99 Unit Price incl. VAT

7

SET SCREW

3234408

$52,49 Unit Price incl. VAT

8

Asm. Button Thrust

3234594

Not Available

9

Plate Thrust

3235183

$115,49 Unit Price incl. VAT

10

BEARING

3234390

$60,89 Unit Price incl. VAT

11

KIT ROLLER [INCL. COMPLETE SET OF 20 ROLLERS]

3234393

$10,49 Unit Price incl. VAT

12

Asm. Roll Cage

3234907

$640,49 Unit Price incl. VAT

13

Asm. Gearcase [Incl. 8 29 35 36]

3234411

Not Available

14

ASM. DRAIN PLUG MAGNETIC

3234412

$83,99 Unit Price incl. VAT

15

Asm. Cover Input

3234463

$241,49 Unit Price incl. VAT

16

PLUG OIL FILL

3234414

$62,99 Unit Price incl. VAT

17

Ring Retaining Internal [TO 5/15/2022]

3234416

$19,94 Unit Price incl. VAT

18

Cover Input

3234418

$241,49 Unit Price incl. VAT

19

SPACER-RING GEAR

3234437

$36,74 Unit Price incl. VAT

20

SPRING TORSION RETAINER

3234908

$173,24 Unit Price incl. VAT

21

RING RETAINING EXTERNAL

3235177

$11,54 Unit Price incl. VAT

22

Asm. Ring and Pinion Gear [Incl. Ring Gear Sub Asm. Pinion Gear Dowel Pin]

3235189

$1 186,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
