1
Engine displacement
325
2
Year
2001
3
Trim
325 MAGNUM 2X4 HDS - A01CB32FC
4
Parts Catalog

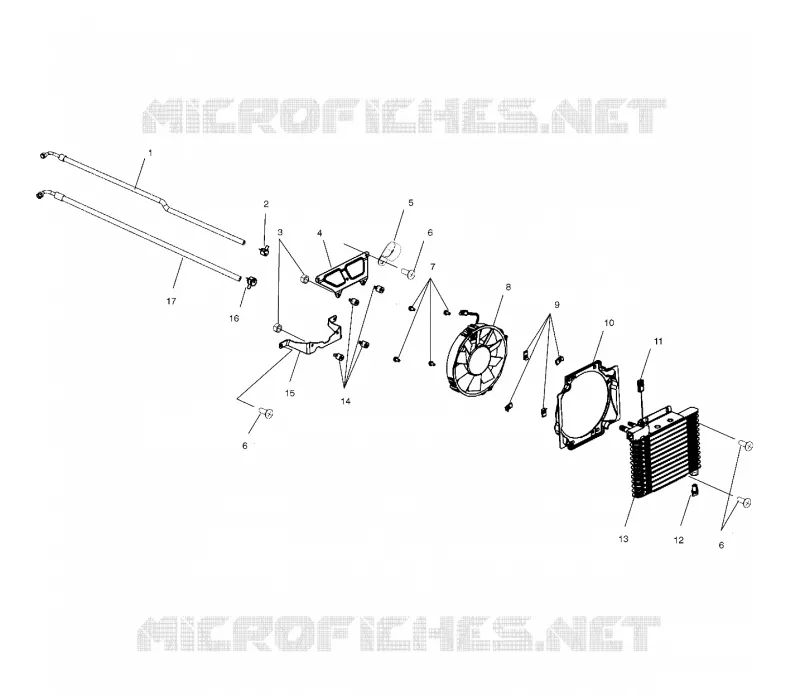

OIL COOLING
5
Parts Diagram
Parts Catalog
REAR CAB SEAT
by
ENGINE MOUNTING
OIL COOLING
1
2
3
4
5
6
6
6
7
8
9
10
11
12
13
13
14
15
16
17
1
2
3
4
5
6
6
6
7
8
9
10
11
12
13
13
14
15
16
17
1
2
3
4
5
6
6
6
7
8
9
10
11
12
13
13
14
15
16
17
1
HOSE-COOLER 9/16# 90° SWIVEL
5412039
$125,99 Unit Price incl. VAT
2
CLAMP-HOSE MUBEA
7080862
Not Available
3
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
4
BRKT OIL COOLER TOP BLK
5243783067
Not Available
5
CLAMP-P CUSHIONED 1.25# I.D.
7080869
$20,99 Unit Price incl. VAT
6
Screw
7515158
$9,44 Unit Price incl. VAT
7
Screw
7517659
$7,34 Unit Price incl. VAT
8
FAN MOTOR
2410157
Not Available
9
U-Clip
7670111
Not Available
10
SHROUD-FAN ATV
5433353
$112,86 Unit Price incl. VAT
11
THERMISTER
4010274
$188,99 Unit Price incl. VAT
12
Valve Plastic Radiator/Cooler Drain
7052296
Not Available
13
COOLER-OIL TO AIR
1240064
Not Available
13
DESC NOT_AVAILABLE
1240074
Not Available
14
Mount Rubber
5411548
$52,49 Unit Price incl. VAT
15
BRKT LOWER OIL COOLER ASM.
1013302
$42,30 Unit Price incl. VAT
16
CLAMP-HOSE MUBEA 1/2#
7080866
$13,64 Unit Price incl. VAT
17
HOSE-COOLER 3/4# 90° SWIVEL (If built before 1/24/01)
5412038
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
