1
Engine displacement
650
2
Year
1991
3
Trim
SWE 650 - S910758
4
Parts Catalog
CYLINDER 650 (4919261926024A)
5
Parts Diagram
Parts Catalog
BRAKE CHAINCASE 650 AND 650 SKS TO SERIAL NUMBER 1839636 (4919261926013A)
by
PISTON AND CRANKSHAFT 650 (4919261926025A)

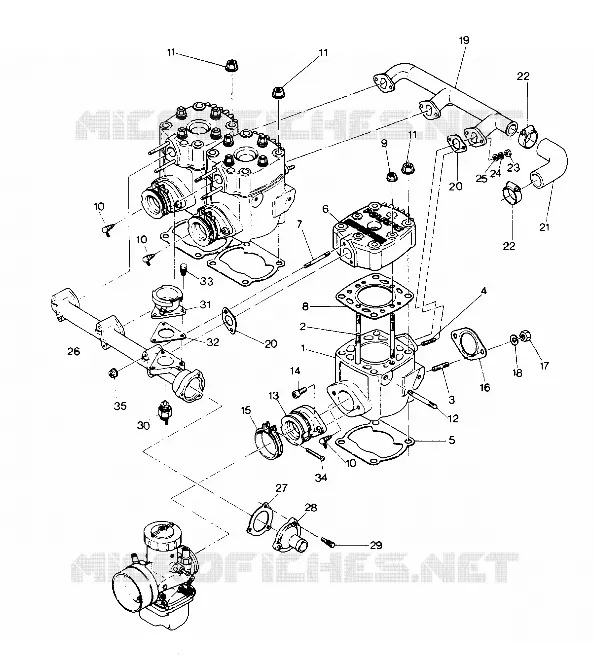

CYLINDER 650 (4919261926024A)
1
CYLINDER (Incl. 1-4 10)
3084320
Not Available
2
STUD
3083392
Not Available
3
STUD (10)
3080016
$9,23 Unit Price incl. VAT
4
STUD
3082931
Not Available
5
GASKET CYLINDER Substituted by 3084614
3084041
Not Available
6
HEAD CYLINDER
3084042
$570,14 Unit Price incl. VAT
7
STUD
3082934
$18,89 Unit Price incl. VAT
8
GASKET HEAD Substituted by 3084376
3083852
Not Available
9
NUT-FLANGE(10)
3082910
Not Available
10
VALVE CHECK Substituted by 3086785
3083337
7051020
$68,24 Unit Price incl. VAT
11
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
12
STUD Substituted by 3083360
3083074
Not Available
13
ADAPTER CARB.
3084228
Not Available
14
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
15
ASM. BAND ADAPTOR [INCL. 9]
3083166
7082340
$36,74 Unit Price incl. VAT
16
GASKET EXHAUST
3083770
Not Available
17
NUT(10)
3080285
Not Available
18
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
19
MANIFOLD WATER INLET
3083397
Not Available
20
GASKET(10)
3082937
Not Available
21
HOSE-MAIN
3082938
Not Available
22
CLAMP HOSE
3083394
Not Available
23
NUT(10)
3082939
Not Available
24
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
25
WASHER(10)
3080078
Not Available
26
OUTLET WATER MANIFOLD
3083853
Not Available
27
GASKET THERMOSTAT
3082944
Not Available
28
COVER CASE THERMOSTAT
3084248
Not Available
29
ASM. BOLT AND WASHER
3083730
$9,44 Unit Price incl. VAT
30
SWITCH THERMAL(93 DEG.C.)
3083055
Not Available
31
NECK ASM FILLER Substituted by 3083398
3083311
Not Available
32
GASKET FILLER NECK
3083340
Not Available
33
BOLT&WASHER ASM.
3083361
Not Available
34
SCREW Substituted by 3081497
3083086
$4,19 Unit Price incl. VAT
35
NUT FLANGE
3083856
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
