1
Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 EFI X2 EPS
4
Parts Catalog
WHEELS, FRONT TIRE AND BRAKE DISC
5
Parts Diagram
Parts Catalog
SUSPENSION, TORSION BAR
by
FUEL TANK ASM.

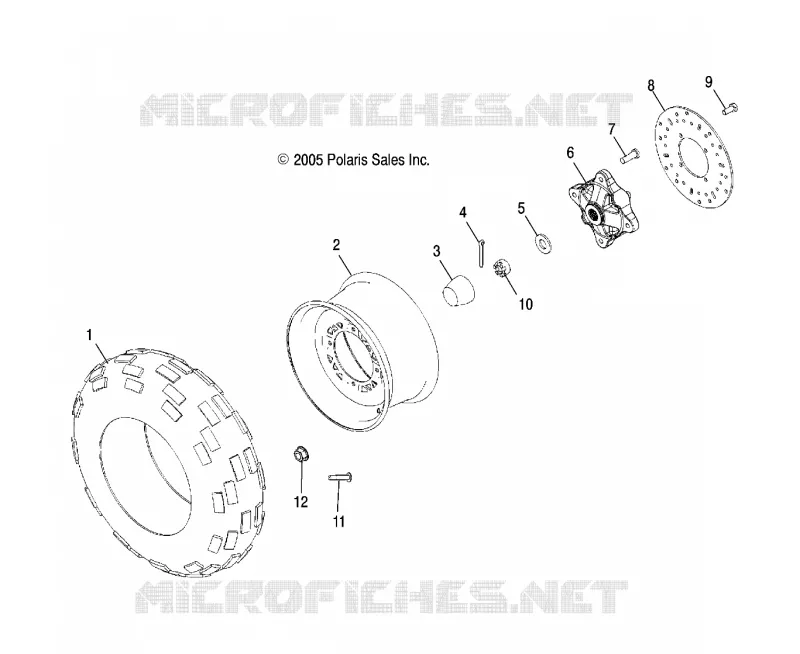

WHEELS, FRONT TIRE AND BRAKE DISC
10
11
12
10
11
12
1
TIRE-25X8-12 NHS 489
5413994
5419027
$153,29 Unit Price incl. VAT
2
WELD-RIM FRONT 10 GA BLK [TO 9/1/2023]
1520263067
1523448-067
$158,54 Unit Price incl. VAT
3
Cover Dust Hub
5413427
$52,49 Unit Price incl. VAT
4
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
5
WASHER
7556004
$13,64 Unit Price incl. VAT
6
Hub Wheel AWD
5134310
5143612
$157,49 Unit Price incl. VAT
7
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
8
DISC-BRAKE 8.95 OD .158
5244314
$141,74 Unit Price incl. VAT
9
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
10
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
11
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
12
NUT-FLANGE TWO PIECE 3/8-24
7547237
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
