1
Engine displacement
650
2
Year
2023
3
Trim
650 INDY XCR 128
4
Parts Catalog
ENGINE, RECOIL STARTER
5
Parts Diagram
Parts Catalog
CRANKCASE
by
ELECTRICAL, SWITCHES, SENSORS AND COMPONENTS

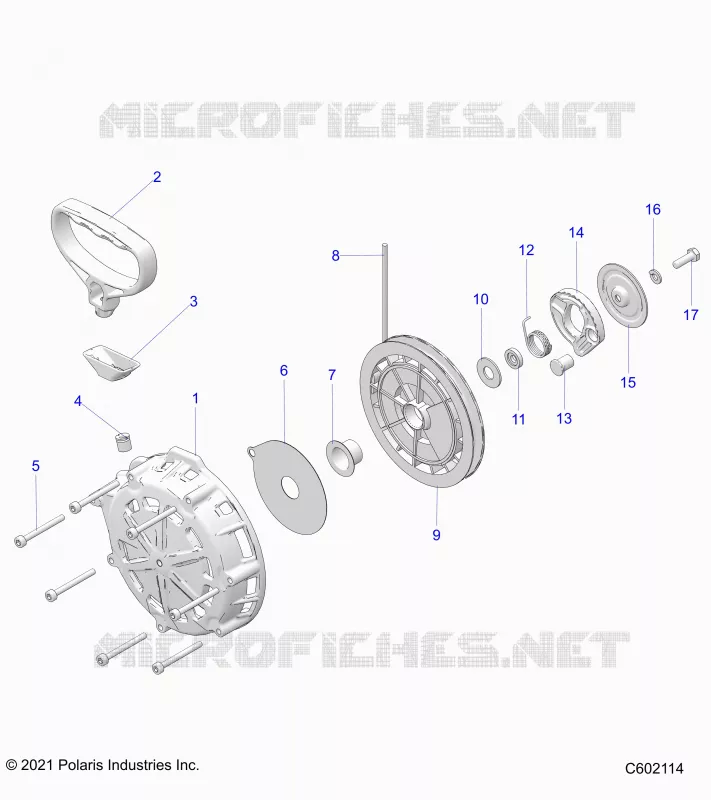

ENGINE, RECOIL STARTER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
1
1
2
2
2
2
2
3
4
4
4
4
5
5
6
7
8
8
8
9
10
11
11
12
13
13
14
15
15
16
17
1
ASM-RECOIL AR [INCL. HOUSING 4 6 7 9-17]
1208931
$398,99 Unit Price incl. VAT
2
HANDLE RECOIL BLACK
5435154070
$16,79 Unit Price incl. VAT
3
ISOLATOR RECOIL HANDLE
5414288
$9,44 Unit Price incl. VAT
4
BUSHING ROPE SLIDE
3083107
3040171
$6,08 Unit Price incl. VAT
5
SCR-SOCFL-M6X1.0X60
7520586
$6,29 Unit Price incl. VAT
6
PLATE-SLIDE
3023597
$26,24 Unit Price incl. VAT
7
SPRING-SPIRAL RECOIL
3023299
$99,74 Unit Price incl. VAT
8
ROPE-STARTER ARAMID
3041994
$68,24 Unit Price incl. VAT
9
REEL-RECOIL
3023303
$141,74 Unit Price incl. VAT
10
SPRING-RETURN RECOIL
3023304
$6,29 Unit Price incl. VAT
11
WASHER-RECOIL
7557025
$6,29 Unit Price incl. VAT
12
SPACER-RECOIL
3023302
$26,24 Unit Price incl. VAT
13
SPRING-FRICTION RECOIL
3023300
$10,49 Unit Price incl. VAT
14
RATCHET-RECOIL
5453993
$12,59 Unit Price incl. VAT
15
PLATE-FRICTION
3021650
$52,49 Unit Price incl. VAT
16
WASHER
7557158
$7,34 Unit Price incl. VAT
17
SCREW-RECOIL
7527929
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
