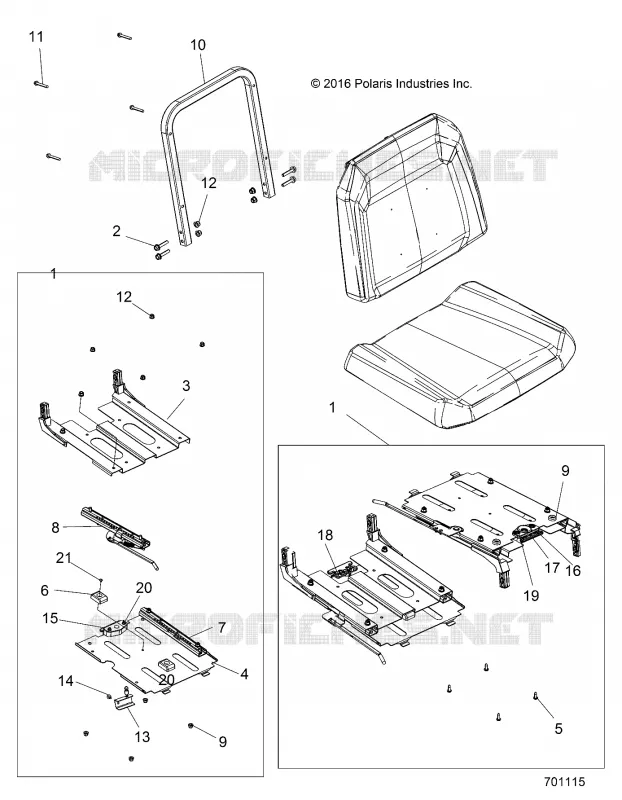

SLIDER, DRIVERS SEAT FOR RANGER CREW 1000 EPS FROM 2018

SLIDER, DRIVERS SEAT

1

ASM. SLIDE SEAT [INCL. 3 4 6-9]

2687470

$834,74 Unit Price incl. VAT

2

SCR-HXFL-M8X1.25X45 8.8 ZOD

7519738

$7,34 Unit Price incl. VAT

3

WELD-SLIDE SEAT TOP BLK

1022741329

$136,49 Unit Price incl. VAT

4

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

5

SCR-TX TRUSS-#14X3/4 HI/LO ZBK

7519045

$6,29 Unit Price incl. VAT

6

SLIDE-SEAT CENTER

5452641

$16,79 Unit Price incl. VAT

7

SLIDE SEAT LH

7081852

$99,74 Unit Price incl. VAT

8

SLIDE SEAT RH

7081853

$99,74 Unit Price incl. VAT

9

BUMPER-SEAT

5414659

$13,64 Unit Price incl. VAT

10

TUBE SEAT BACK MATTE BLACK

5339929458

$83,99 Unit Price incl. VAT

11

SCR-#14X1-3/4 LG HI/LO/TAPER-M

7512093

$2,09 Unit Price incl. VAT

12

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

13

WELD-SEAT RETAINING PIN BLK

1023648329

$27,29 Unit Price incl. VAT

14

SCR-TFTX-M8X1.25X30 ZFB

7520121

$10,49 Unit Price incl. VAT

15

BODY-LATCH SEAT

5437119

$13,64 Unit Price incl. VAT

16

CAP LATCH SEAT

5437120

$16,79 Unit Price incl. VAT

17

LEVER-LATCH SEAT

5453437

$52,49 Unit Price incl. VAT

18

SPRING LATCH SEAT

7081466

$57,74 Unit Price incl. VAT

19

SCR-HXFL-M6X1.0X35 W/PATCHLOK

7519280

$9,44 Unit Price incl. VAT

20

NUT-HXFLGHD M6 SERRATED

7547270

$7,34 Unit Price incl. VAT

21

RVT-3/16(.020-.200)AL-BULBX-B

7621485

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
