1
Engine displacement
500
2
Year
1998
3
Trim
500 RMK - 0982964
4
Parts Catalog
SKI 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263B003)
5
Parts Diagram
Parts Catalog
HOOD 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263A011)
by
STEERING

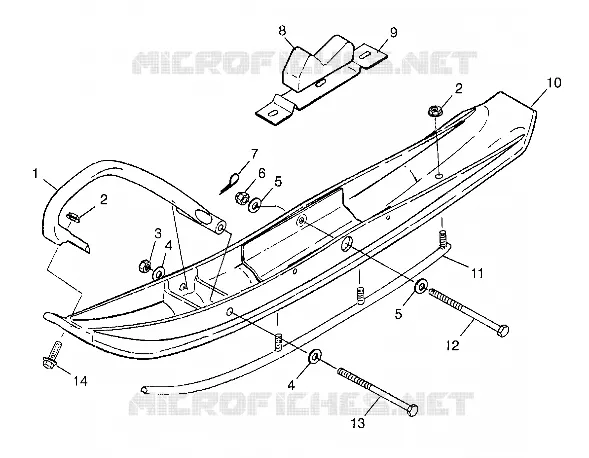

SKI 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263B003)
1
2
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
1
2
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
1
TOE PLASTIC SKI Substituted by 5432209-070
5432209
5434165-070
$73,49 Unit Price incl. VAT
2
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
3
NUT FLEXLOC(10) Substituted by 7542411
7542452
7542411
$6,29 Unit Price incl. VAT
4
Washer .105
7555832
$4,19 Unit Price incl. VAT
5
WASHER(10) Substituted by 7555832
7555851
7555832
$4,19 Unit Price incl. VAT
6
NUT CASTLE(10) Substituted by 7542438
7542457
7542438
$3,14 Unit Price incl. VAT
7
PIN COTTER(10) Substituted by 7661205
7661209
7661205
$1,56 Unit Price incl. VAT
8
STOP RUBBER
5411094
5412018
$47,24 Unit Price incl. VAT
9
SUPPORT SKI RUBBER BLK
5241912067
Not Available
10
SKI/SHORTSADDLE COMP W/O TOE Substituted by 1820473-070 (RMK)
1820473
Not Available
11
SKAG CARBIDE 4# 60DEG COMP (Incl. 16) (RMK)
2871688
$110,24 Unit Price incl. VAT
12
SCREW (10)
7512596
$36,74 Unit Price incl. VAT
13
BOLT
7515514
$13,64 Unit Price incl. VAT
14
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
