1
Engine displacement
500
2
Year
1998
3
Trim
500 RMK - 0982964
4
Parts Catalog
BRAKE 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263B010)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263B009)
by
DRIVEN CLUTCH 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263C002)

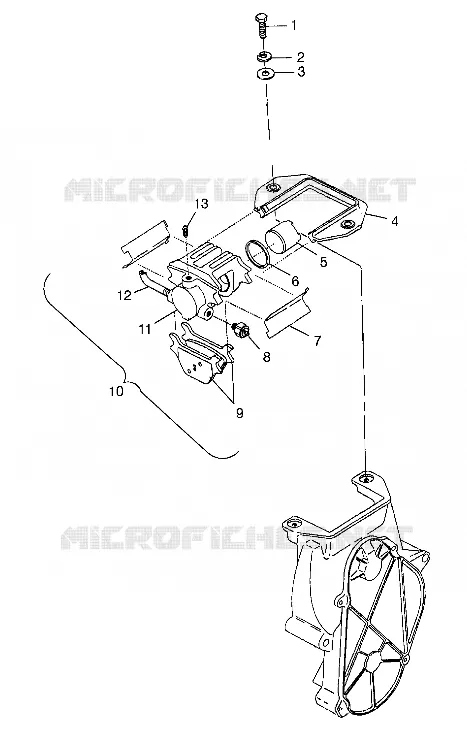

BRAKE 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263B010)
1
2
3
4
5
6
7
8
9
9
9
9
10
10
10
10
11
12
13
1
2
3
4
5
6
7
8
9
9
9
9
10
10
10
10
11
12
13
1
SCR-HH-3/8-16X1.75 GR5 ZY3
7515521
$7,34 Unit Price incl. VAT
2
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
3
WASHER
7555806
$1,56 Unit Price incl. VAT
4
KIT CALIPER BRKT.
1930733
Not Available
5
KIT PISTON SEAL (Incl. 9)
1930734
Not Available
6
SEAL
2200466
$62,99 Unit Price incl. VAT
7
KIT CLIP SPRING (Qty. 2)
2200467
Not Available
8
SWITCH STOPLIGHT
4110135
Not Available
9
KIT BRAKEPAD HD.TYP.61 Substituted by 2201020 (Incl. 7)
2200594
Not Available
9
KIT BRAKE PAD Substituted by 2201019 (Incl. 7)
2200604
Not Available
10
CALIPER ASM HD.BRAKE (XLT SKS PT) (Incl. 7-14)
1930756
Not Available
10
CALIPER BRAKE Substituted by 1930825 (Incl. 1-8)
1930701
Not Available
11
KIT CALIPER(AIR-COOLED) (Incl. 8 9 & 14)
1930737
Not Available
12
LINE BRAKE
1930755
Not Available
13
KIT INLET
1930735
$14,58 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
