1
Engine displacement
1000
2
Year
2016
3
Trim
RZR 1000 60 INCH ALL OPTIONS
4
Parts Catalog
SUSPENSION, REAR SHOCK INTERNALS
5

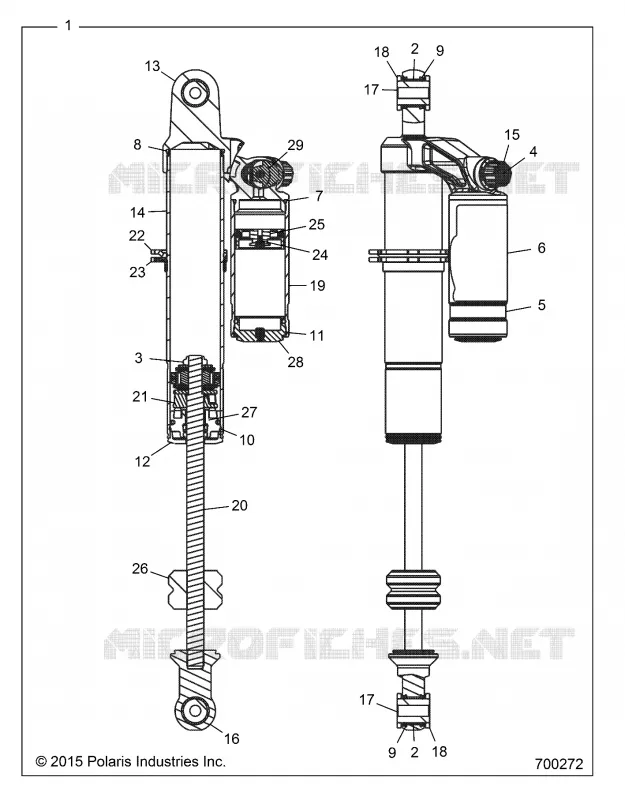

Parts Diagram
Parts Catalog
REAR SUSPENSION CONTROL ARMS
by
SUSPENSION, REAR SHOCK INTERNALS
1
1
1
1
1
2
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
9
1
Plate: Top-Out [1.570 OD X 0.503 ID X 0.128 TH Ø 0.620 Shaft]
1500838
Not Available
1
PLATE TOP OUT
1500943
$68,24 Unit Price incl. VAT
1
SHOCK RAR 2# RESVR PB RH
7044484
$1 480,49 Unit Price incl. VAT
1
SHOCK REAR 2# RESVR PB LH
7044483
$1 480,49 Unit Price incl. VAT
1
K-SEAL REBUILD 803-00-747
1501210
$141,74 Unit Price incl. VAT
2
BUSHING EYELET
1501010
$36,74 Unit Price incl. VAT
3
FASTENER STANDARD: NUT LOCK [1/2-20 X 0.313 TLG]
1500842
1500472
$41,99 Unit Price incl. VAT
4
SCREW
1501011
$25,19 Unit Price incl. VAT
5
DECAL-BAND PERF. SERIES
1501012
$29,39 Unit Price incl. VAT
6
DECAL RESERVOIR
1501013
$20,99 Unit Price incl. VAT
7
O-RING-132
1500623
$12,59 Unit Price incl. VAT
8
SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD N-70 STATIC
1500510
$12,59 Unit Price incl. VAT
9
SEAL WEATHER
1501014
$16,79 Unit Price incl. VAT
10
RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS
1500236
$17,84 Unit Price incl. VAT
11
RING-RETAINING WIRE 2.050
1501015
$17,84 Unit Price incl. VAT
12
CAP BEARING
1501100
$73,49 Unit Price incl. VAT
13
BODY CAP PIGGY BACK RH
1501017
$367,49 Unit Price incl. VAT
13
BODY CAP PIGGY BACK LH
1501016
$404,24 Unit Price incl. VAT
14
BODY 1.834X10.5
1501018
$120,74 Unit Price incl. VAT
15
KNOB LOW SPEED
1501019
$20,99 Unit Price incl. VAT
16
EYELET PART: EYELET 1.0097 BORE X .800 W 5/8UNF 2.200 LG
1501089
$83,99 Unit Price incl. VAT
17
EYELET PART: SLEEVE .397 ID X .875 OD X 1.181 TLG
1501087
$41,99 Unit Price incl. VAT
18
EYELET PART: SPACER .876 ID X 1.25 OD X .150 TLG
1501088
$11,54 Unit Price incl. VAT
19
RESERVOIR:0 1.834 BORE 5.000TLG ALUMINUM THREADED ID SHORT OD STEP
1501023
$99,74 Unit Price incl. VAT
20
SHAFT .62X11.4TLG
1501024
$188,99 Unit Price incl. VAT
21
SPACER: SHAFT 0.625 ID X 0 1.300 OD X O 0.588 TLG NYLON 66
1501025
$17,84 Unit Price incl. VAT
22
SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG 2.080-14 STUB ACME ID] LOW CARBON STEEL ZINC PLATED
1500872
$89,24 Unit Price incl. VAT
23
SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG 2.080-14 STUB ACME ID] LOW CARBON STEEL ZINC PLATED
1500873
$99,74 Unit Price incl. VAT
24
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE COMPLETE
1500161
$68,24 Unit Price incl. VAT
25
ASM. PISTON FLOAT
1501026
$83,99 Unit Price incl. VAT
26
BUMPER B/O SHAFT
1501028
$47,24 Unit Price incl. VAT
27
ASM. BEARING
1501099
$94,49 Unit Price incl. VAT
28
END CAP-RESERVOIR
1501027
$173,24 Unit Price incl. VAT
29
ASM. DAMPENING ADJUST LSC
1501006
$204,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
