1
Engine displacement
1000
2
Year
2016
3
Trim
RZR 1000 60 INCH ALL OPTIONS
4
Parts Catalog

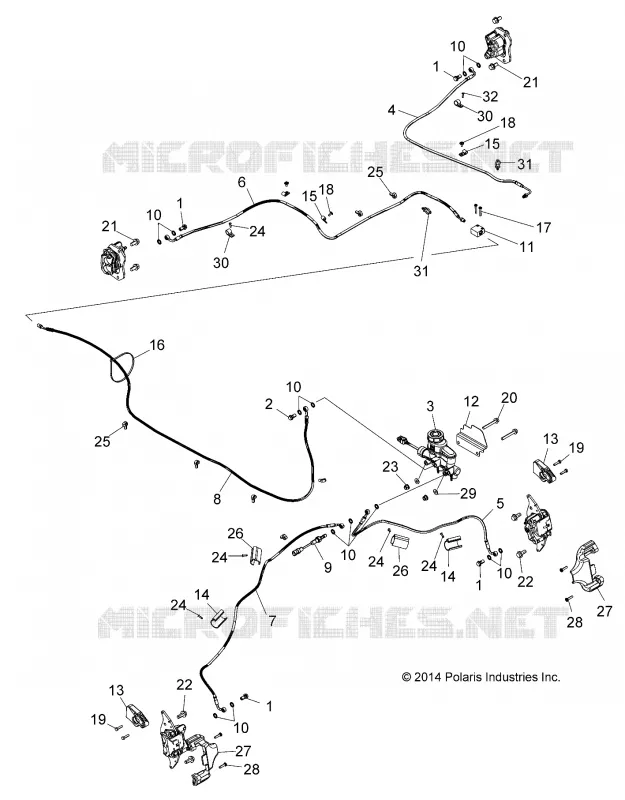

BRAKES, BRAKE LINES AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
SEAT ASM. AND SLIDER
by
DRIVE TRAIN, CLUTCH COVER AND DUCTING
BRAKES, BRAKE LINES AND MASTER CYLINDER
1
1
1
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
13
14
14
15
16
17
18
18
19
19
20
21
22
22
23
24
24
25
25
26
26
27
27
28
28
29
30
31
32
1
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
2
BOLT-BANJO 10MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
3
ASM. MASTER CYLINDER TANDEM
1911982
$246,74 Unit Price incl. VAT
4
LINE-BRK RL 40.2 90B 90F 346�G
1912258
$120,74 Unit Price incl. VAT
5
LINE-BRK FL 31.3 90SB 20B 180G
1912259
$120,74 Unit Price incl. VAT
6
LINE-BRK RR 55.1# 90B 20F 35�G
1912257
$141,74 Unit Price incl. VAT
7
LINE-BRK FR 42.3 90SB 70B 330G
1912260
$141,74 Unit Price incl. VAT
8
LINE BRAKE MCT
1912252
$173,24 Unit Price incl. VAT
9
SWITCH-BRK M10X1.25 DBL SEALED
4014225
$167,99 Unit Price incl. VAT
10
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
11
FITTING-TEE BRAKE
7052293
$110,24 Unit Price incl. VAT
12
SHIELD MASTER CYLINDER
5259049
$89,24 Unit Price incl. VAT
13
SCRAPER BRAKE FRONT
5438948
$31,49 Unit Price incl. VAT
14
CLIP BRAKE LINE OUTER
5451488
$10,49 Unit Price incl. VAT
15
CLAMP-HOSE .312DIA VINYL COAT
7080683
$4,19 Unit Price incl. VAT
16
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
17
SCR-10-24X1.25TFM PN TRX TRI-Y
7512025
$9,44 Unit Price incl. VAT
18
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
19
SCR-M6X1.0X25-HX/FL-Y/D
7516823
$5,76 Unit Price incl. VAT
20
SCR-HXFL-M8X1.25X60 8.8 ZOD
7519298
$7,34 Unit Price incl. VAT
21
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
22
SCR-HXFL-M10X1.25X25 8.8 Z NY
7518760
$17,84 Unit Price incl. VAT
23
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
24
RIVET-POP 5/32(.251-.375)-ST-B
7621323
$2,09 Unit Price incl. VAT
25
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
26
CLIP BRAKE LINE INNER
5451487
$5,76 Unit Price incl. VAT
27
SHIELD CV FRONT BLACK
5451375070
$68,24 Unit Price incl. VAT
28
SCR-TXPH-M6X1.0X25 8.8 ZC
7519248
$6,29 Unit Price incl. VAT
29
WASHER
7555954
$9,44 Unit Price incl. VAT
30
CLAMP-HOSE .625 DIA VNL COATED
7080880
$10,49 Unit Price incl. VAT
31
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
32
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
