1
Engine displacement
0
2
Year
1992
3
Trim
TRAIL BOSS 4X4 - W928127
4
Parts Catalog

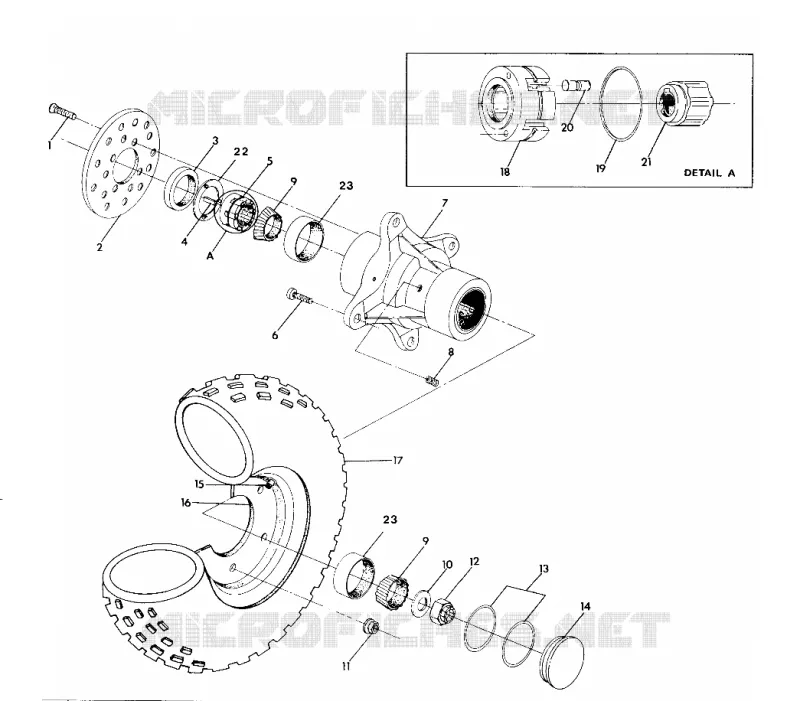

FRONT WHEEL ASSEMBLY 250 4X4 / W928127 (4922872287B010)
5
Parts Diagram
Parts Catalog
STRUT ASSEMBLY 250 4X4 / W928127 (4922872287B009)
by
REAR WHEEL DRIVE ASSEMBLY 250 4X4 / W928127 (4922872287B011)
FRONT WHEEL ASSEMBLY 250 4X4 / W928127 (4922872287B010)
20
21
22
23
23
23
23
23
23
23
23
1
BOLT(10)
7515321
Not Available
2
DISC BRAKE
5211325
$141,74 Unit Price incl. VAT
3
SEAL FR. HUB
3610019
$68,24 Unit Price incl. VAT
4
KEY
7721205
Not Available
5
CLUTCH ASM FR.HUB
1520143
Not Available
6
STUD WHEEL 5/16-18(10)
7515330
Not Available
7
HUB WHEEL Substituted by 1520171
5130682
Not Available
8
PLUG PIPE
7052045
$26,24 Unit Price incl. VAT
9
BRG TAPER.ROLL.CONE
3554506
$54,59 Unit Price incl. VAT
10
WASHER(10)
5211101
Not Available
11
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
12
NUT LOCK Substituted by 7543201
7543202
Not Available
13
O RING
5410470
$4,19 Unit Price incl. VAT
14
CAP HUB
5431368
$47,24 Unit Price incl. VAT
15
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
16
RIM FRONT WELD. (Primed)
1520118
Not Available
17
TIRE FR(22X8-10)
5410480
Not Available
18
CAGE ROLL Substituted by 3250028
3250023
$430,49 Unit Price incl. VAT
19
SPRING GARTER
3250022
Not Available
20
ROLLS
3250010
$68,24 Unit Price incl. VAT
21
CAM
3250024
Not Available
22
PLATE ARMATURE
5211148
$52,49 Unit Price incl. VAT
23
HUB WHEEL ASM. (Incl. 3 6 7 23)
1520171
Not Available
23
BRG TAPER ROLL CUP
3554507
$54,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
