1
Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 EFI X2 EPS
4
Parts Catalog
SEAT, PASSENGER, BACK
5

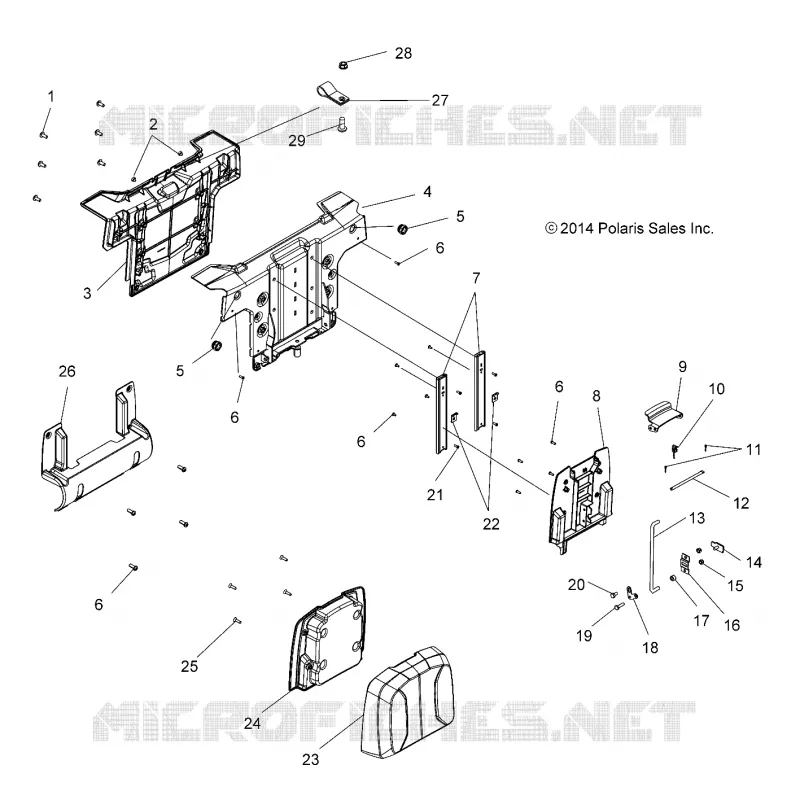

Parts Diagram
Parts Catalog
CHASSIS, FUEL TANK SUPPORT BRACKET
by
SEAT, PASSENGER, BOTTOM
SEAT, PASSENGER, BACK
1
2
3
4
5
5
6
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
SCR-5/16-18X3/4 TR/TX-GR5
7518601
$9,44 Unit Price incl. VAT
2
Bumper Rubber
5413087
$5,24 Unit Price incl. VAT
3
BASE COVER PASSENGER SEAT
5436531
$104,99 Unit Price incl. VAT
4
SUPPORT SEAT BACK
1015676067
$545,99 Unit Price incl. VAT
5
Grommet Seat Latch
5412994
5418181
$6,29 Unit Price incl. VAT
6
SCR-#10X1/2-HI/LO-TRX-Y
7512076
$2,09 Unit Price incl. VAT
7
Slide Single Extention
7081379
$104,99 Unit Price incl. VAT
8
BASE SLIDER PASSENGER SEAT
5436532
$104,99 Unit Price incl. VAT
9
PLATE HANDLE SEAT
5250944
$68,24 Unit Price incl. VAT
10
Spring
7043219
$19,94 Unit Price incl. VAT
11
PIN COTTER(10)
7661010
$1,56 Unit Price incl. VAT
12
Rod Passenger Seat
5135336
$104,99 Unit Price incl. VAT
13
Plate Handle Passenger Back
5250162
$62,99 Unit Price incl. VAT
14
Latch Slider
5631980
$17,84 Unit Price incl. VAT
15
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
16
PLATE RETAINER SLIDE
5249903
$16,79 Unit Price incl. VAT
17
SPACER-.34 ID X .56 OD X .31
7556373
$6,29 Unit Price incl. VAT
18
Plate Slider Pivot
5250163
$13,64 Unit Price incl. VAT
19
Screw Shoulder
7518615
$9,44 Unit Price incl. VAT
20
SCREW(10)
7512102
$6,29 Unit Price incl. VAT
21
SCR-#8-32X.375# TORX TRI-S
7518256
$4,19 Unit Price incl. VAT
22
Bracket Stop
5250454
$12,59 Unit Price incl. VAT
23
BUN SEAT
5436149070
$167,99 Unit Price incl. VAT
24
Base Seat
5436150
$68,24 Unit Price incl. VAT
25
Screw
7517652
$9,44 Unit Price incl. VAT
26
COVER LATCH
5436533070
5466035-070
$89,24 Unit Price incl. VAT
27
HANDLE SEAT
5813086
$62,99 Unit Price incl. VAT
28
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
29
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
