1
Engine displacement
0
2
Year
1991
3
Trim
lite-gt-0913133
4
Parts Catalog

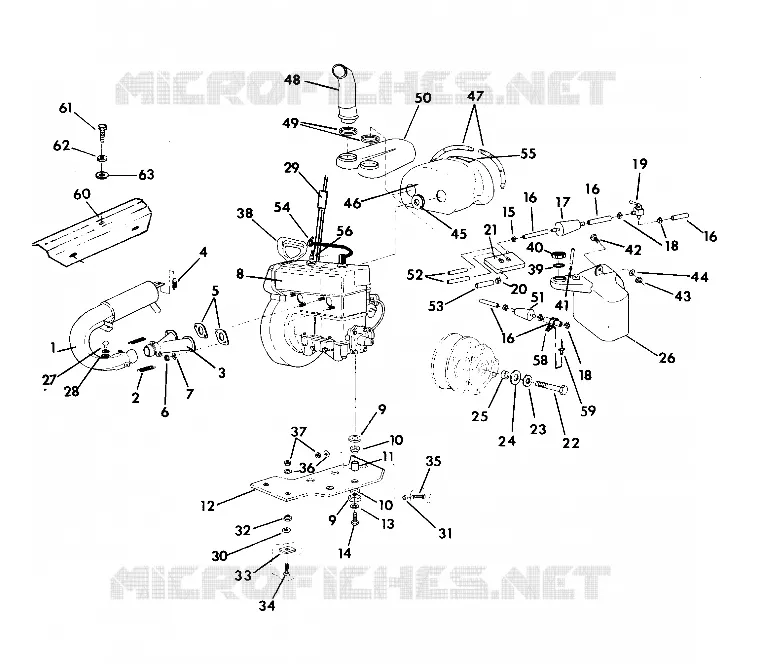

ENGINE MOUNTING INDY LITE GT (4920132013015A)
5
Parts Diagram
Parts Catalog
NOSEPAN CONSOLE INDY LITE GT (4920132013005A)
by
DRIVE CLUTCH INDY LITE GT (4920132013017A)
ENGINE MOUNTING INDY LITE GT (4920132013015A)
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
16
16
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
58
59
60
61
62
63
1
MUFFLER (GT) Substituted by 1260567-029
1260567
Not Available
2
SPRING EXHAUST(10)
7042031
7041687
$12,59 Unit Price incl. VAT
3
MANIFOLD Substituted by 1260570-029
1260570
Not Available
4
SPRING-EXHAUST
7042029
$10,49 Unit Price incl. VAT
5
GASKET COMPL. (EXHAUST) Substituted by 3083770
3082068
Not Available
6
NUT(10)
3080285
Not Available
7
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
8
ENG.EC34-2PM-04
1211494
Not Available
9
CAP
5221901
Not Available
10
DAMPNER-VIB.
5410320
Not Available
11
BUSHING-MOTOR MT.
5010163
Not Available
12
PLATE MOTOR MOUNT Substituted by 5224836
5222292
Not Available
13
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
14
BOLT(10)
7512515
$5,76 Unit Price incl. VAT
15
CLAMP-HOSE(10)
7080134
Not Available
16
LINE-BOOST 3/16 ID 85 CM
8450003
8450003-1525
$136,49 Unit Price incl. VAT
17
FILTER FUEL (10)
2530008
$10,49 Unit Price incl. VAT
18
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
19
VALVE FUEL SHUT-OFF
7052039
Not Available
20
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
21
PUMP FUEL (Incl. 2-5)
3083596
Not Available
22
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
23
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
24
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
25
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
26
TANK OIL
5431225
Not Available
27
DAMPNER VIB.
5410467
$16,79 Unit Price incl. VAT
28
WASHER THRUST(10)
7555788
Not Available
29
CABLE THROTTLE Substituted by 7080557
7080426
Not Available
30
WASHER-.390X1.12X.060 FL-Y
7555823
$7,34 Unit Price incl. VAT
31
BUSHING
5020397
Not Available
32
BUSHING THREADED
5020562
$6,18 Unit Price incl. VAT
33
PLATE SPACER
5211201
$7,97 Unit Price incl. VAT
34
BOLT(10)
7515510
$6,29 Unit Price incl. VAT
35
BOLT(10)
7515503
$9,44 Unit Price incl. VAT
36
Washer Flat
7555761
$4,19 Unit Price incl. VAT
37
Nut
7542403
Not Available
38
HANDLE-RECOIL
5430520
Not Available
39
GASKET OIL CAP
5810141
$4,19 Unit Price incl. VAT
40
CAP OIL TANK
5430779
$31,49 Unit Price incl. VAT
41
FITTING OUTLET SINGLE
7052042
$13,64 Unit Price incl. VAT
42
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
43
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
44
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
45
BOOT-SILENCER
5410311
Not Available
46
BOX SILENCER
5431212
Not Available
47
SPRING HOLDDOWN
7041244
Not Available
48
DUCT INTAKE UPPER
5431206
Not Available
49
SEAL
5810462
$7,97 Unit Price incl. VAT
50
SILENCER INTAKE LOWER
5431203
Not Available
51
FILTER
2530009
$12,59 Unit Price incl. VAT
52
BULK-3/16IDX1FT.LINE Substituted by 8450037-600
8450037
$125,99 Unit Price incl. VAT
53
FUEL LINE 1/4"SAE #30R7
8450040
8450040-600
$136,49 Unit Price incl. VAT
54
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
55
DECAL SILENCER [No Longer Available]
7072087
Not Available
56
SPARKPLUG (10)
3070156
$7,34 Unit Price incl. VAT
58
CLIP HALF [MANUAL START ONLY]
7080393
$6,29 Unit Price incl. VAT
59
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
60
SHIELD MUFFLER [No Longer Available]
5222597
Not Available
61
BOLT(10)
7515354
$7,34 Unit Price incl. VAT
62
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
63
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
