1
Engine displacement
0
2
Year
1991
3
Trim
lite-gt-0913133
4
Parts Catalog
STEERING INDY LITE GT (4920132013009A)
5

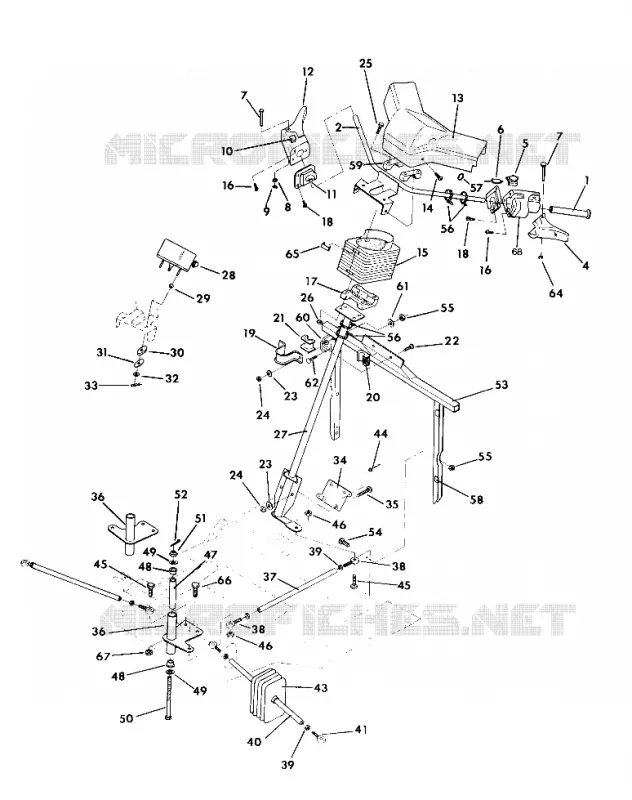

Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI INDY LITE GT (4920132013007A)
by
SUSPENSION INDY LITE GT (4920132013011A)
STEERING INDY LITE GT (4920132013009A)
1
2
4
5
6
7
7
8
9
10
11
12
13
14
15
16
16
17
18
18
19
20
21
22
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
38
38
38
38
38
38
38
39
39
39
39
39
39
39
39
40
41
41
41
41
43
44
45
45
46
46
47
48
48
49
49
50
51
52
53
54
56
56
58
59
60
61
62
64
65
66
67
68
1
GRIP H#BAR BLACK Substituted by 5432634
5410272067
$52,49 Unit Price incl. VAT
2
HANDLEBAR (LITE GT) Substituted by 1843036-067
1843036
Not Available
4
LEVER-BRAKE
5430602
$68,24 Unit Price incl. VAT
5
SWITCH DIMMER
4110104
Not Available
6
SWITCH BRAKE LIGHT
4110105
Not Available
7
PIN RETAINING
7661624
$23,09 Unit Price incl. VAT
8
WASHER
7555730
$7,34 Unit Price incl. VAT
9
RING RETAINING
7710401
$7,34 Unit Price incl. VAT
10
SWITCH AUX.SHUT-OFF
4110106
$141,74 Unit Price incl. VAT
11
ADAPTOR BLOCK
5430604
$26,24 Unit Price incl. VAT
12
LEVER-THROTTLE
5430601
Not Available
13
COVER H#BAR W/SPEEDO (W/Speedometer)
5431232070
Not Available
14
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
15
BOOT STRG.POST
5431234070
Not Available
16
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
17
BLOCK HANDLEBAR Substituted by 5630187-067 (SS)
5630187
$8,39 Unit Price incl. VAT
18
SCR-SHSEMS-3/8-16X0.375 GR8 Z
7512465
$7,34 Unit Price incl. VAT
19
BUSHING UPPER STRG. Substituted by 5220887-067
5220887
5257028
$62,99 Unit Price incl. VAT
20
BUSHING STRG. UPPER Substituted by 5431572
5430966
5433416
$16,79 Unit Price incl. VAT
21
BUSHING UPPER STRG. Substituted by 5431573
5431138
5433415
$16,79 Unit Price incl. VAT
22
BOLT(10)
7515321
Not Available
23
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
24
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
25
BOLT(10) (SS)
7512254
Not Available
26
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
27
POST STEERING Substituted by 1823150-067 (Indy Lite)
1823150
Not Available
28
SPEEDOMETER (Indy Lite)
3280112
Not Available
29
SPACER
5410592
Not Available
30
SPACER SPEEDO.MTG. (Indy Lite)
5810442
Not Available
31
PLATE MTG (SPEEDO) (Indy Lite)
5211189
$19,94 Unit Price incl. VAT
32
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
33
HAIRPIN COTTER(10) (Indy Lite)
7660701
$3,66 Unit Price incl. VAT
34
BRKT BOLT RETAINER
5222421
Not Available
35
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
36
FROG LH STRG. (Indy Lite)
5222402
Not Available
37
ROD DRAG LINK
5333005
Not Available
38
ROD END RH Substituted by 7060167
7060152
7060167
$99,74 Unit Price incl. VAT
38
ROD END LH Substituted by 7060166
7060151
7060166
$99,74 Unit Price incl. VAT
39
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
39
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
40
ROD TIE Substituted by 5333006-067
5333006
Not Available
41
ROD END RH Substituted by 7060165
7060125
7060165
$99,74 Unit Price incl. VAT
41
ROD END LH Substituted by 7060164
7060124
7060164
$99,74 Unit Price incl. VAT
43
BOOT TIE ROD
5410576
Not Available
44
RIVET Substituted by 7621429
7621620
7621429
$2,09 Unit Price incl. VAT
45
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
46
NUT FLEXLOC(10) Substituted by 7542411
7542452
7542411
$6,29 Unit Price incl. VAT
47
BUSHING SPACER
5333009
$19,20 Unit Price incl. VAT
48
BUSHING
5630371
$8,07 Unit Price incl. VAT
49
WASHER(10)
7555817
Not Available
50
BOLT(10)
7512572
$23,09 Unit Price incl. VAT
51
NUT CASTLE(10)
7542523
Not Available
52
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
53
HOOP STEERING Substituted by 1011782-067
1011782
Not Available
54
BOLT CARRIAGE
7512298
$7,34 Unit Price incl. VAT
56
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
58
VENT HOSE S/CLIP(10)
7670072
Not Available
59
BLOCK HANDLEBAR Substituted by 5630382-067
5630382
Not Available
60
RINGMOUNT RECOIL Substituted by 5224442-067
5224442
Not Available
61
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
62
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
64
CLIP-SPEED.(10)
7670044
$9,44 Unit Price incl. VAT
65
CLIP STRG.BOOT(10)
7670073
Not Available
66
SCREW(10)
7515434
Not Available
67
Nut
7542403
Not Available
68
BLOCK THROTTLE Substituted by 5431265
5431076
5431592
$73,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
