1
Engine displacement
1000
2
Year
2020
3
Trim
SPORTSMAN 1000 XP 48" TRAIL PACKAGE
4
Parts Catalog

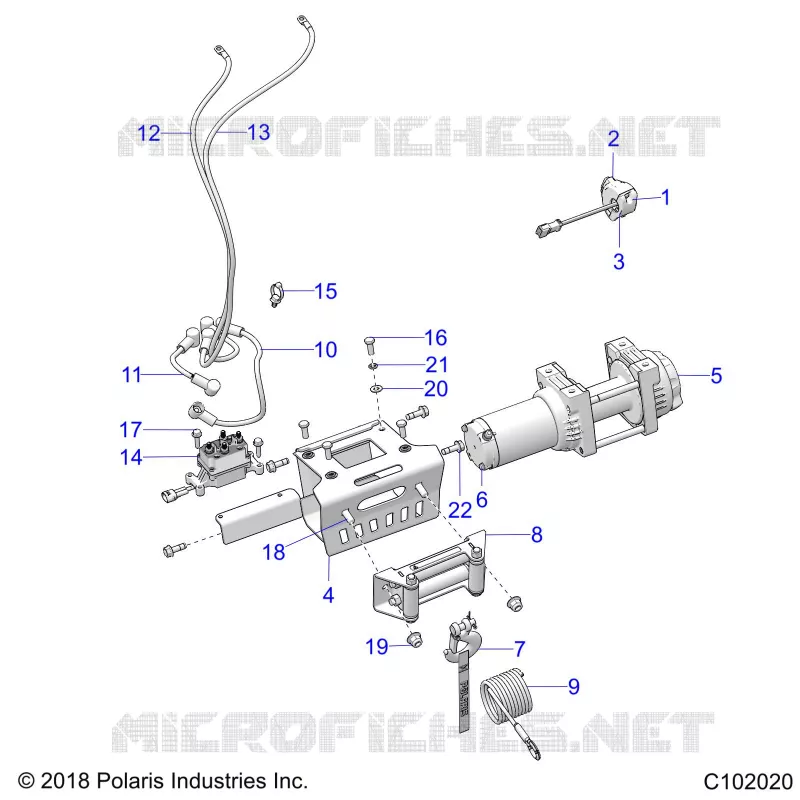

BODY, WINCH
5
Parts Diagram
Parts Catalog
SKID PLATES
by
DRIVE TRAIN, GEARCASE MOUNTING, FRONT
BODY, WINCH
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
K-WINCH SWITCH HBR EU ATV [INCL. HOUSING SWITCH & SCREWS]
2207175
$120,74 Unit Price incl. VAT
2
SWITCH-HBR EU ATV
4017111
2207175
$120,74 Unit Price incl. VAT
3
SCREW-10X5/8-HI/LO PN-T25 TRX-M
7518238
$7,34 Unit Price incl. VAT
4
WELD-WINCH MT BRKT CTR ATV
1022577
$173,24 Unit Price incl. VAT
5
WINCH-POL3500 BT �
2206562
$545,99 Unit Price incl. VAT
6
K-SVC HANDLE HD WINCH
2205265
$16,79 Unit Price incl. VAT
6
K-SVC WINCH+BRKT 35 ATV [INCL.4-6 16 18]
2205835
$614,24 Unit Price incl. VAT
7
STRAP-WINCH HOOK
7082085
$5,99 Unit Price incl. VAT
7
HOOK-LATCH WINCH [INCLS. 2-4]
2411836
$16,79 Unit Price incl. VAT
8
ROLLER FAIRLEAD WINCH 25/3500
2411848
$152,24 Unit Price incl. VAT
9
ROPE-WINCH SYNTHETIC 50# �
2878888
$141,74 Unit Price incl. VAT
10
CABLE-WINCH YELLOW 6 GA 300MM
4013468300
$68,24 Unit Price incl. VAT
11
CABLE-WINCH BLUE 6 GA 340MM
4013469340
$62,99 Unit Price incl. VAT
12
CABLE-POWER WINCH BLK #6 530MM
4013470530
$68,24 Unit Price incl. VAT
13
CABLE-POWER WINCH RED #6 510MM
4013471510WC
$68,24 Unit Price incl. VAT
14
CONTACTOR-WINCH POL LIF CAP
4015095
$148,04 Unit Price incl. VAT
15
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
16
SCR-HH-M8X1.25X20 8.8 ZPC D204
7518097
$7,34 Unit Price incl. VAT
17
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
18
SCR-RHCAR-M10X1.5X25 8.8 ZOD
7519372
$4,19 Unit Price incl. VAT
19
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
20
WASHER(10) Substituted by 7558402
7555770
7558402
$1,56 Unit Price incl. VAT
21
WASHER-LOCK M8X12.7ODX2MM ZY3
7556111
$3,14 Unit Price incl. VAT
22
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
