1
Engine displacement
650
2
Year
1991
3
Trim
SWE 650 - S910758
4
Parts Catalog
MAGNETO 650 (4919261926026A)
5
Parts Diagram
Parts Catalog
PISTON AND CRANKSHAFT 650 (4919261926025A)
by
RECOIL STARTER 650 (4919261926027A)

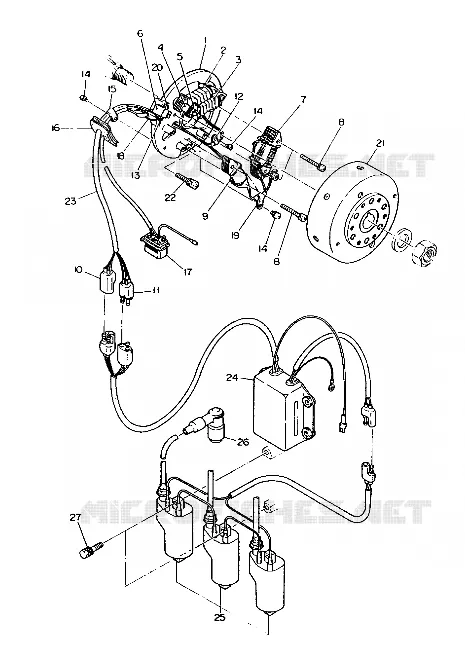

MAGNETO 650 (4919261926026A)
1
PLATE ASM. (Incl. 1-20)
3084253
Not Available
2
COIL EXCITING
3084091
Not Available
3
COIL PULSATING
3084092
Not Available
4
COLLAR
3082961
Not Available
5
SCREW-WASHER ASM(10)
3082962
Not Available
6
COIL PULSER
3084093
Not Available
7
COIL.LAMP #A#
3084233
Not Available
7
COIL LAMP
3084232
Not Available
8
SCREW & WASHER
3081588
Not Available
9
COIL LAMP #B#
3084234
Not Available
10
COUPLER-3P
3083150
$18,68 Unit Price incl. VAT
11
COUPLER
3083909
$41,99 Unit Price incl. VAT
12
CLAMP
3081259
Not Available
13
SCREW & WASHER ASM.
3084096
Not Available
14
SCREW&WASHER (10)
3081260
Not Available
15
CLAMP
3081146
$2,09 Unit Price incl. VAT
16
GROMMET
3082969
Not Available
17
CONNECTOR Substituted by 3081513
3080839
$36,74 Unit Price incl. VAT
18
BAND
3084097
Not Available
19
CLAMP
3084098
Not Available
20
BAND
3084099
Not Available
21
FLYWHEEL
3084235
Not Available
22
BOLT&WASHER ASM.
3083866
Not Available
23
HARNESS WIRE
3084236
Not Available
24
CDI SYSTEM
3084237
Not Available
25
COIL IGNITION Substituted by 3085212
3084103
Not Available
26
CAP SPARK PLUG Substituted by 4020129
3083155
$52,49 Unit Price incl. VAT
27
SCREW & WASHER ASM.
3083867
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
