1
Engine displacement
440
2
Year
1994
3
Trim
440 XCR SP - 0941660
4
Parts Catalog

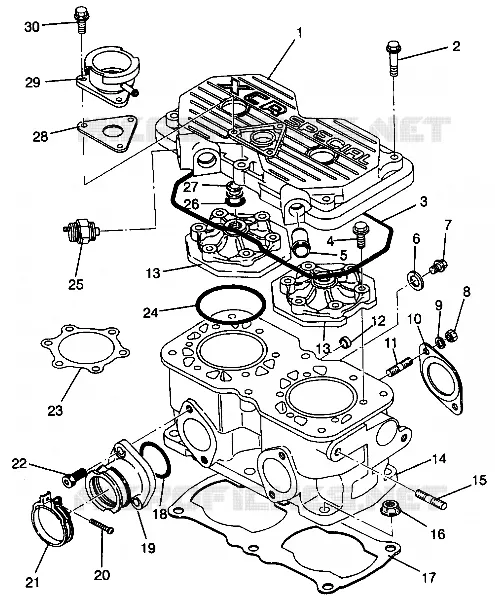

CYLINDER 440 XCR SP 0941660 (4927082708034A)
5
Parts Diagram
Parts Catalog
CRANKCASE ASSEMBLY 440 XCR SP 0941660 (4927082708033A)
by
WATER PUMP 440 XCR SP 0941660 (4927082708035A)
CYLINDER 440 XCR SP 0941660 (4927082708034A)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
COVER HEAD (Incl. 5)
3084710
Not Available
2
BOLT FLANGE
3084134
Not Available
3
O RING HD.COVER
3084711
Not Available
4
BOLT FLANGE (10)
3084435
Not Available
5
PIPE WATER (Water)
3083452
Not Available
6
GASKET ALUMINUM
3084492
$7,34 Unit Price incl. VAT
7
PLUG
3084491
Not Available
8
NUT(10)
3080285
Not Available
9
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
10
GASKET EXHAUST NA(10) Substituted by 3086757 (Exhaust) NA
3084439
Not Available
11
STUD Substituted by 3085326
3084270
Not Available
12
PLUG Substituted by 3240071
3084712
Not Available
13
HEAD CYLINDER
3084708
Not Available
14
CYLINDER (Incl. 11 12 15)
3084707
Not Available
15
STUD
3084524
Not Available
16
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
17
GASKET BASE
3084768
$94,49 Unit Price incl. VAT
18
O-RING Substituted by 3085619
3084272
5418045
$36,74 Unit Price incl. VAT
19
ADAPTER
3084325
Not Available
20
SCREW Substituted by 3081497
3083086
$4,19 Unit Price incl. VAT
21
ASM. BAND ADAPTOR [INCL. 9]
3083166
7082340
$36,74 Unit Price incl. VAT
22
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
23
SHIM HD.GASKET (Opt.)
3084686
Not Available
24
O RING(CYLINDER) (Std.)
3084709
Not Available
25
SWITCH THERMAL(93 DEG.C.)
3083055
Not Available
26
O-RING HEAD Substituted by 3085192 (Head)
3084433
Not Available
27
SPACER [No Longer Available]
3084687
Not Available
28
GASKET FILLER NECK
3083340
Not Available
29
NECK FILLER Substituted by 3083398
3083339
Not Available
30
BOLT&WASHER ASM.
3083361
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
