1
Engine displacement
440
2
Year
1994
3
Trim
440 XCR SP - 0941660
4
Parts Catalog

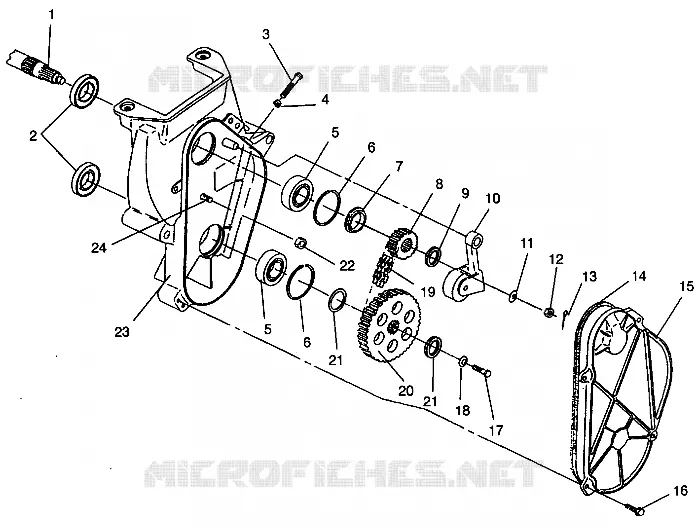

CHAINCASE ASSEMBLY 440 XCR SP 0941660 (4927082708018A)
5
Parts Diagram
Parts Catalog
BRAKE 440 XCR SP 0941660 (4927082708017A)
by
DRIVE TRAIN ASSEMBLY 440 XCR SP 0941660 (4927082708019A)
CHAINCASE ASSEMBLY 440 XCR SP 0941660 (4927082708018A)
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
3
SCR-HH-3/8-16X2.75GR5 ZY3
7515511
$7,34 Unit Price incl. VAT
4
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
5
BEARING CHAINCASE **
3514306
Not Available
6
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
7
SPACER SPROCKET
5010270
Not Available
8
SPROCKET 21 T
3221035
Not Available
9
WASHER
7555863
$4,19 Unit Price incl. VAT
10
TIGHTENER ASM GEARCASE Substituted by 1332213
1332096
Not Available
11
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
12
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
13
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
14
GASKET-CHAINCASE
5410277
Not Available
15
COVER CHAINCASE Substituted by 5630968
5630413
Not Available
16
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
17
SCREW(10)
7515350
7517979
$7,34 Unit Price incl. VAT
18
WASHER-SPRING CON 5/16X.090 Z
7571618
$11,54 Unit Price incl. VAT
19
CHAIN 66 PITCH
3224024
Not Available
20
SPROCKET 39 T
3222034
Not Available
21
WSHR-1.00X1.250X.120-Y
7555864
$4,19 Unit Price incl. VAT
22
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
23
CHAINCASE TOP MNT.BRAKE
5130849
Not Available
24
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
