1
Engine displacement
570
2
Year
2014
3
Trim
RANGER 570 EFI - R14RH57AA/AC/AR/6EAZ
4
Parts Catalog

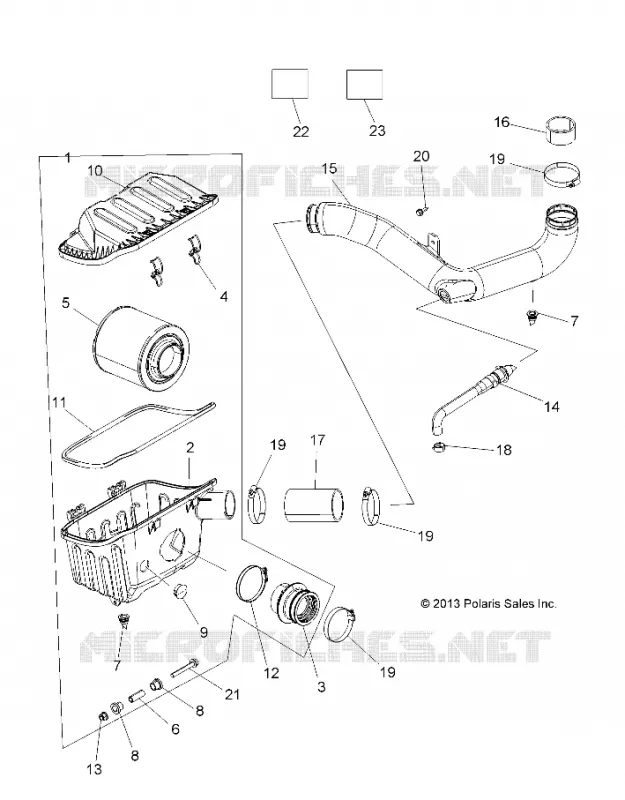

ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
SENSORS
by
ENGINE, BREATHER
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
16
16
17
18
19
19
19
19
20
21
22
23
1
2
3
4
5
6
7
8
9
9
1
ASM. AIRBOX [INCL. 1-12]
1204922
$278,24 Unit Price incl. VAT
2
BOX-AIR INTAKE
5450174
$257,24 Unit Price incl. VAT
3
BOOT ENGINE INTAKE
5450310
$83,99 Unit Price incl. VAT
4
CLIP-AIRBOX
7081707
$9,44 Unit Price incl. VAT
5
FILTER AIRBOX MAIN
2521372
7082037
$48,71 Unit Price incl. VAT
6
SHAFT-COMPRESSION LMTR 34.4MM
5138987
$31,49 Unit Price incl. VAT
7
PLUG-DRAIN
5414472
$10,49 Unit Price incl. VAT
8
BUSHING-MOUNT
5414719
$5,24 Unit Price incl. VAT
9
PLUG-1 INCH
5414780
$7,34 Unit Price incl. VAT
10
COVER-AIRBOX
5450175
$47,24 Unit Price incl. VAT
11
SEAL AIR BOX COVER
5813942
5814106
$20,99 Unit Price incl. VAT
12
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
13
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
14
HOSE BREATHER
5414500
2521911
$99,74 Unit Price incl. VAT
15
DUCT-INTAKE AIRBOX
5414503
$115,49 Unit Price incl. VAT
16
HOSE SEAL ENGINE INLET [BUILT 12/9/13 AND BEFORE]
5414747
Not Available
16
SEAL ENGINE INLET
5415033
$7,34 Unit Price incl. VAT
17
FOAM-FAN OUT DUCT BOTTOM
5414748
$29,39 Unit Price incl. VAT
18
CLAMP-HOSE SPRING .81
7081026
$14,69 Unit Price incl. VAT
19
CLAMP-HOSE 70MM DIA. WORM GEAR
7081623
$5,76 Unit Price incl. VAT
20
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
21
SCR-HXFL-M8X1.25X60 8.8 ZOD
7519298
$7,34 Unit Price incl. VAT
22
DECAL PROTECTOR WHITE
7180133
Not Available
23
DECAL CAUTION INFO
7180123
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
