DRIVE TRAIN, MAIN GEARCASE FOR RANGER 500 4X4 CREW - R12WH50AG/AH/AK/AR FROM 2012

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, SECONDARY CLUTCH

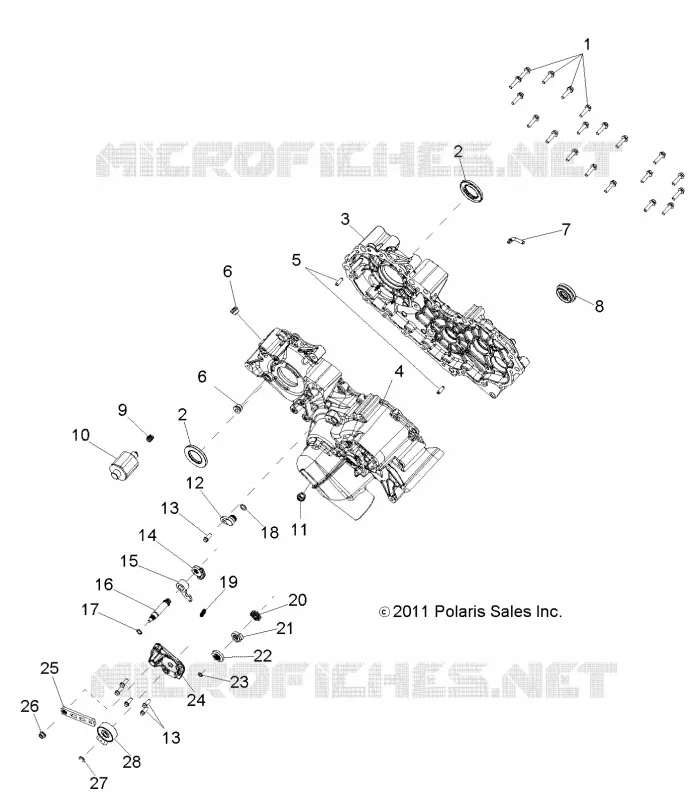

DRIVE TRAIN, MAIN GEARCASE

-

Asm. Main Gearcase [Incl. All]

1332982

Not Available

1

SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25

3234114

$13,64 Unit Price incl. VAT

2

SEAL TRIPLE LIP NITRILE 1.969 X 2.750 X .315

3234300

$57,74 Unit Price incl. VAT

3

Cover LH

3235344

$787,49 Unit Price incl. VAT

4

Case RH

3235343

Not Available

5

PIN DOWEL 5/16 X 1.0

3234244

$13,64 Unit Price incl. VAT

6

PLUG 3/4-16 41775 INTERNAL HEX

3233794

$31,49 Unit Price incl. VAT

7

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

8

SEAL TRIPLE LIP VITON HELIX 30 X 47

3234851

$68,24 Unit Price incl. VAT

9

SPRING COMPRESSION 0.54 O.D. X 0.44 I.D. X 0.05 WIRE

3234277

$26,24 Unit Price incl. VAT

10

Solenoid

3234298

$545,99 Unit Price incl. VAT

11

MAGNETIC PLUG 3/4-16 INTERNAL HEX

3234529

$31,49 Unit Price incl. VAT

12

SENSOR SPEED

4012167

$204,74 Unit Price incl. VAT

13

SCREW TAPPING HEX WASHER HD 1/4-20 X 0.75

3234247

$10,49 Unit Price incl. VAT

14

GEAR-SECTOR 31T

3233832

$68,24 Unit Price incl. VAT

15

PAWL DETENT

3233829

$68,24 Unit Price incl. VAT

16

SHAFT SHIFT

3233831

$115,49 Unit Price incl. VAT

17

O-RING -014

3233869

$10,49 Unit Price incl. VAT

18

O-RING

3234302

$13,64 Unit Price incl. VAT

19

SPRING COMPRESSION 0.36 O.D. X 1.125

3233830

$19,94 Unit Price incl. VAT

20

GEAR SECTOR 16T

3233839

$68,24 Unit Price incl. VAT

21

Disc Lockout

3234081

$17,84 Unit Price incl. VAT

22

Star Detent

3235045

$52,49 Unit Price incl. VAT

23

O-RING 2-012

3233076

$11,54 Unit Price incl. VAT

24

COVER SECTOR GEARS MACHINED

3234188

$209,99 Unit Price incl. VAT

25

Bellcrank Shift Drum

3234950

Not Available

26

NUT LOCK HEX FLANGE NYLON 5/16-24

3233961

$5,24 Unit Price incl. VAT

27

RING RETAINING BASIC EXTERNAL

3233834

$19,94 Unit Price incl. VAT

28

SWITCH ROTARY 6-PIN ITW [GEAR POSITION]

3233835

$225,74 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
