DRIVE TRAIN, MAIN GEARCASE FOR SPORTSMAN 500 HO - A10MH50AJ/AX/AZ FROM 2010

DRIVE TRAIN, GEARCASE FRONT OUTPUT SHAFT

DRIVE TRAIN, MAIN GEARCASE INTERNALS

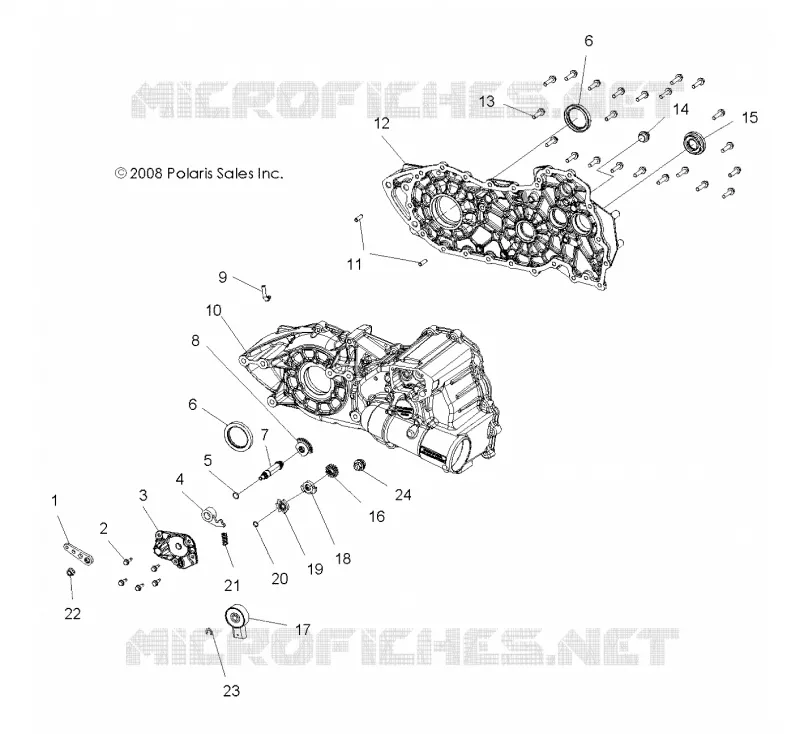

DRIVE TRAIN, MAIN GEARCASE

-

Asm. Gearcase [Incl. All]

1332626

Not Available

1

BELLCRANK .510 HOLE 92 ~

3234584

$52,49 Unit Price incl. VAT

2

SCREW

3233826

$17,84 Unit Price incl. VAT

3

COVER SECTOR GEARS MACHINED

3234188

$209,99 Unit Price incl. VAT

4

PAWL DETENT

3233829

$68,24 Unit Price incl. VAT

5

O-RING -014

3233869

$10,49 Unit Price incl. VAT

6

SEAL TRIPLE LIP 40 X 70 X 7

3233878

$57,74 Unit Price incl. VAT

7

SHAFT SHIFT

3233831

$115,49 Unit Price incl. VAT

8

GEAR-SECTOR 31T

3233832

$68,24 Unit Price incl. VAT

9

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

10

Gearcase RH

3234242

$782,24 Unit Price incl. VAT

11

PIN DOWEL

3233247

$13,64 Unit Price incl. VAT

12

Gearcase LH

3234056

Not Available

13

SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25

3234114

$13,64 Unit Price incl. VAT

14

PLUG 3/4-16 41775 INTERNAL HEX

3233794

$31,49 Unit Price incl. VAT

15

Seal

3233874

$57,74 Unit Price incl. VAT

16

GEAR SECTOR 16T

3233839

$68,24 Unit Price incl. VAT

17

SWITCH ROTARY 6-PIN ITW [GEAR POSITION]

3233835

$225,74 Unit Price incl. VAT

18

Disc Lockout

3234081

$17,84 Unit Price incl. VAT

19

STAR DETENT

3233909

$52,49 Unit Price incl. VAT

20

O-RING 2-012

3233076

$11,54 Unit Price incl. VAT

21

SPRING COMPRESSION 0.36 O.D. X 1.125

3234578

$26,24 Unit Price incl. VAT

22

NUT LOCK HEX FLANGE NYLON 5/16-24

3233961

$5,24 Unit Price incl. VAT

23

RING RETAINING BASIC EXTERNAL

3233834

$19,94 Unit Price incl. VAT

24

MAGNETIC PLUG 3/4-16 INTERNAL HEX

3234529

$31,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
