Engine displacement
500
2
Year
2010
3
Trim
SPORTSMAN 500 HO - A10MH50AJ/AX/AZ
4
Parts Catalog
CYLINDER AND HEAD
5

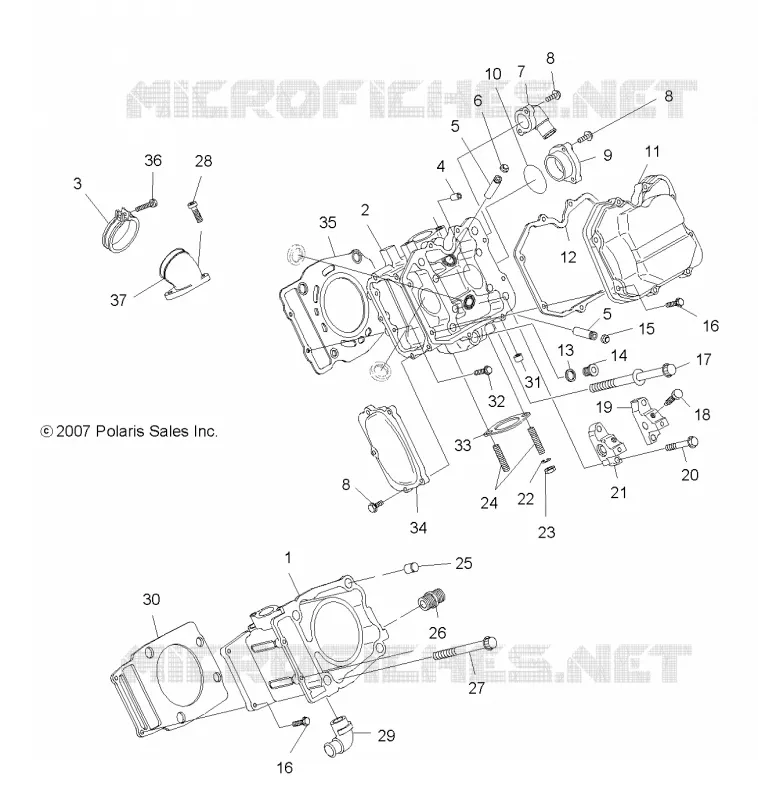

Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
EXHAUST
CYLINDER AND HEAD
1
1
2
3
4
5
5
15
7
8
8
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
1
Asm. Cylinder [Incl. 34][4x4][6x6]
3089256
$720,29 Unit Price incl. VAT
1
Asm. Cylinder [Incl. 30][Built 12/12/09 and After]
3090293
$720,29 Unit Price incl. VAT
2
HEAD CYLINDER * (Incl. 5-7 15 17-19 22)
3085527
$1 275,74 Unit Price incl. VAT
3
Asm. Band [Incl. 1]
3090209
$47,24 Unit Price incl. VAT
4
PIN STRAIGHT
3084857
Not Available
5
GUIDE VALVE
3084994
$83,99 Unit Price incl. VAT
6
Seal Exhaust Valve
3090098
$20,99 Unit Price incl. VAT
7
Adapter
3084870
$120,74 Unit Price incl. VAT
8
BOLT FLANGE(10)
3084877
Not Available
9
ADAPTER CAMSHAFT
3084866
Not Available
10
O-RING
3084867
$41,99 Unit Price incl. VAT
11
COVER ROCKER
3085073
$152,24 Unit Price incl. VAT
12
GASKET (R.COVER)
3085074
$57,74 Unit Price incl. VAT
13
GASKET
3084861
$9,44 Unit Price incl. VAT
14
PLUG
3084860
$13,64 Unit Price incl. VAT
15
Seal Exhaust Valve
3090098
$20,99 Unit Price incl. VAT
16
Bolt Flange
3084874
Not Available
17
BOLT
3084875
Not Available
18
BOLT (ROCKER SHAFT)
3085854
Not Available
19
SUPPORT VALVE ROCKER (PTO)
3084864
Not Available
20
BOLT
3084876
$9,44 Unit Price incl. VAT
21
SUPPORT VALVE ROCKER (MAG)
3084863
$173,24 Unit Price incl. VAT
22
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
23
Nut
3087199
Not Available
24
STUD (10)
3085326
Not Available
25
Pin Knock
3087266
Not Available
26
Union Oil Filter
3089956
Not Available
27
BOLT FLANGE
3084873
Not Available
28
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
29
Pipe Water [Built 12/12/09 and After]
3090290
Not Available
29
Pipe 2 Elbow
3086747
Not Available
30
Gasket Cylinder
3089966
$73,49 Unit Price incl. VAT
31
PLUG BLIND
3084862
Not Available
32
Bolt Flange
3086781
$9,44 Unit Price incl. VAT
33
GASKET EXH.
3085075
$73,49 Unit Price incl. VAT
34
Cover Camshaft
3089242
$115,49 Unit Price incl. VAT
35
GASKET HEAD
3085371
$104,99 Unit Price incl. VAT
36
SCREW
3081497
$4,19 Unit Price incl. VAT
37
ADAPTER
3085809
Not Available
