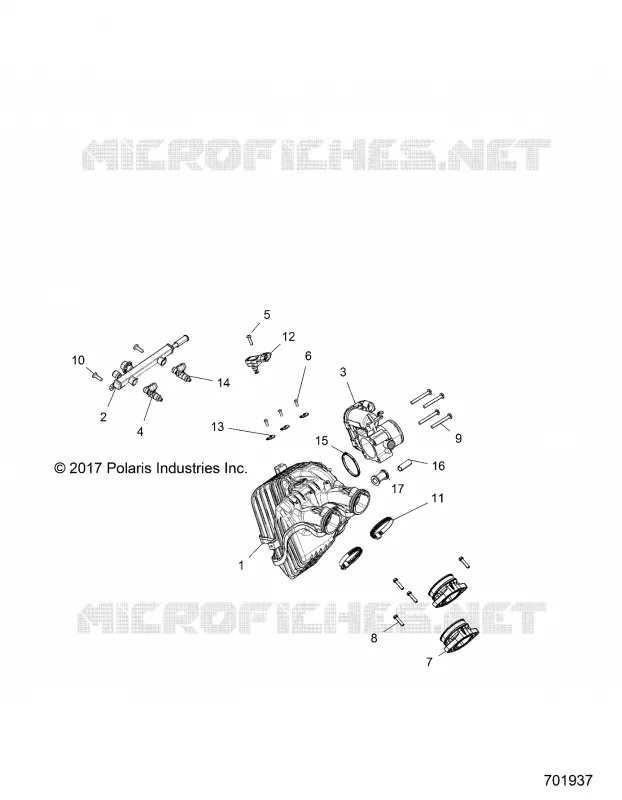

ENGINE, INTAKE AND THROTTLE BODY FOR RANGER CREW 1000 EPS FROM 2018

ENGINE, INTAKE AND THROTTLE BODY

1

MANIFOLD-INTAKE COMPOSITE [INCL. 6 13 14]

1205773

$398,99 Unit Price incl. VAT

2

RAIL FUEL

1204454

$314,99 Unit Price incl. VAT

3

THROTTLE-ETC 46MM

1204455

$997,49 Unit Price incl. VAT

4

INJ-FUEL EV14COMPACT 200G

2521068

$188,99 Unit Price incl. VAT

5

SCREW-PLASTITE 5.0MMX20-PN-T25

7519952

$7,34 Unit Price incl. VAT

6

SCREW-PLASTITE 4.5MM

7519933

$7,34 Unit Price incl. VAT

7

ADAPTER THROTTLE BODY

1205301

$83,99 Unit Price incl. VAT

8

SCREW-HXFLG M6X1.0X25 10.9

7519297

$7,34 Unit Price incl. VAT

9

SCR-1/4X2 HI/LO-PH-PN TRX-M

7518377

$9,44 Unit Price incl. VAT

10

SCR-TXPH-#14X3/4 HI/LO CLR

7519290

$7,34 Unit Price incl. VAT

11

CLAMP BAND NARROW

7080413

$5,76 Unit Price incl. VAT

12

SENSOR-TMAP DSS3-TF

2411528

$178,49 Unit Price incl. VAT

13

CLIP INTAKE ROUTING

5258229

$7,34 Unit Price incl. VAT

14

O-RING-BOSCH EV-14 UPPER BLUE

1500198

$20,25 Unit Price incl. VAT

15

LIMITER-COMPRESSION AF.0113666

5138678

$68,24 Unit Price incl. VAT

16

GASKET-ETC EN.0113664

5813964

$25,19 Unit Price incl. VAT

17

GROMMET-LX.0113665

5813965

$36,74 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
