1
Engine displacement
500
2
Year
2004
3
Trim
A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA
4
Parts Catalog
MAGNETO
5

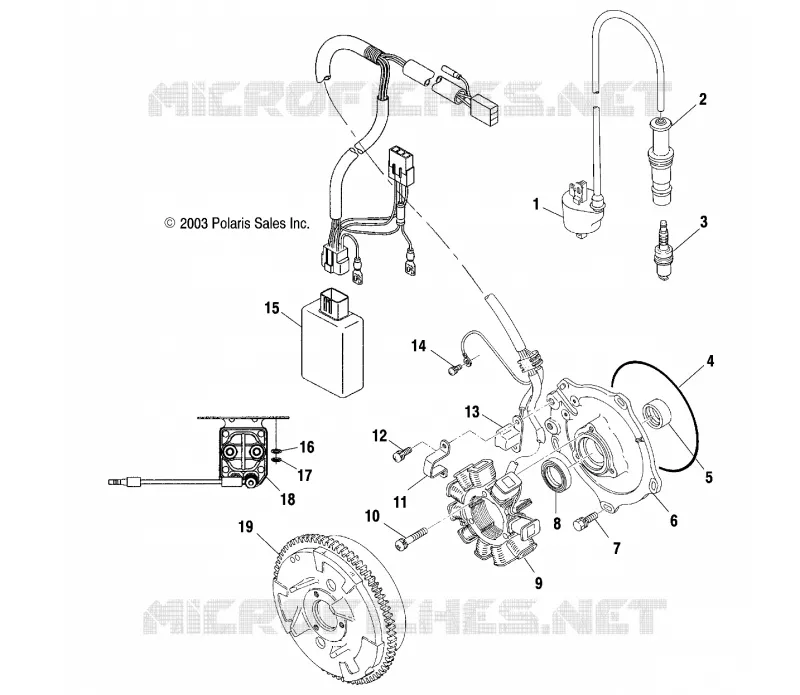

Parts Diagram
Parts Catalog
CYLINDER
by
STARTING MOTOR
MAGNETO
1
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
1
Coil Ignition
3089261
Not Available
1
Asm. Ignition Coil [Incl. 1 2]
3089260
Not Available
2
CAP SPARKPLUG *
3084980
$115,49 Unit Price incl. VAT
3
Plug Spark
3084997
3070172
$7,34 Unit Price incl. VAT
4
O-RING
3084978
$68,24 Unit Price incl. VAT
5
BEARING METAL
3084972
Not Available
6
Asm. Plate [Incl. 5 8 9 11-15]
3089253
$890,39 Unit Price incl. VAT
6
Plate
3089248
Not Available
7
BOLT&WASHER ASM.
3081657
$9,44 Unit Price incl. VAT
8
SEAL OIL
3084973
$52,49 Unit Price incl. VAT
9
Stator [Incl. 13]
3089249
Not Available
10
Asm. Screw and Washer
3089251
$10,49 Unit Price incl. VAT
11
Band Pulse
3089250
Not Available
12
SCREW&WASHER ASM.
3084976
Not Available
13
Coil Pulser [2x4]
3089254
$204,74 Unit Price incl. VAT
14
SCREW&WASHER ASM(10)
3081256
$6,29 Unit Price incl. VAT
15
CDI System
3089238
$745,49 Unit Price incl. VAT
16
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
17
NUT-1/4-20 HEX-Y
7542105
$7,34 Unit Price incl. VAT
18
Switch Magnetic [Incl. 17 18]
4010930
4011335
$115,49 Unit Price incl. VAT
19
Flywheel w/Ring Gear
3089247
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
