1
Engine displacement
autre
2
Year
1995
3
Trim
SCRAMBLER 4X4 - W957840
4
Parts Catalog

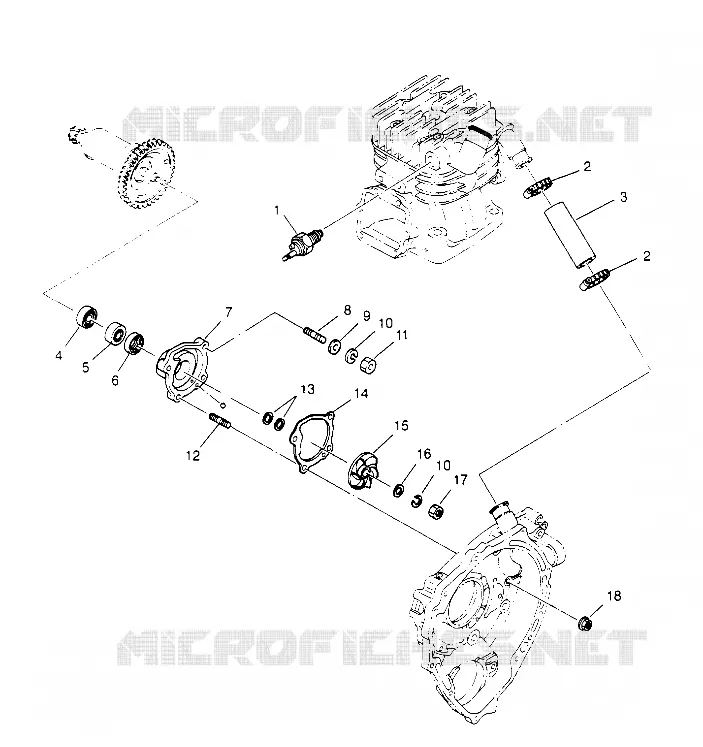

WATER PUMP SCRAMBLER W957840 (4927252725D001)
5
Parts Diagram
Parts Catalog
GEAR SELECTOR ASSEMBLY SCRAMBLER W957840 (4927252725C008)
by
OIL PUMP SCRAMBLER W957840 (4927252725D002)
WATER PUMP SCRAMBLER W957840 (4927252725D001)
1
2
2
3
4
5
6
7
7
7
7
8
9
10
10
11
12
13
13
13
13
14
15
16
17
18
1
SWITCH THERMAL IOS
3084284
Not Available
2
CLAMP HOSE Substituted by 3086774
3084191
Not Available
3
HOSE MAIN Substituted by 3086773
3084190
Not Available
4
BEARING BALL
3084183
Not Available
5
SEAL OIL
3084184
Not Available
6
SEAL OIL
3084185
Not Available
7
CASING WATERPUMP Substituted by 3086770 (Incl. 7 12 )
3084754
Not Available
7
CASING WATERPUMP Substituted by 3086770 (Incl. 4-7 12)
3084753
Not Available
8
STUD
3084182
Not Available
9
WASHER(10)
3080078
Not Available
10
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
11
NUT(10)
3084375
Not Available
12
STUD Substituted by 3086772
3084520
Not Available
13
SPACER #3 (0.1)
3084188
Not Available
13
SPACER #4 (0.2)
3084189
Not Available
14
GASKET (Casing)
3084187
Not Available
15
IMPELLER
3084186
Not Available
16
WASHER
3082206
$1,04 Unit Price incl. VAT
17
NUT
3083073
$4,19 Unit Price incl. VAT
18
NUT FLANGE
3083856
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
