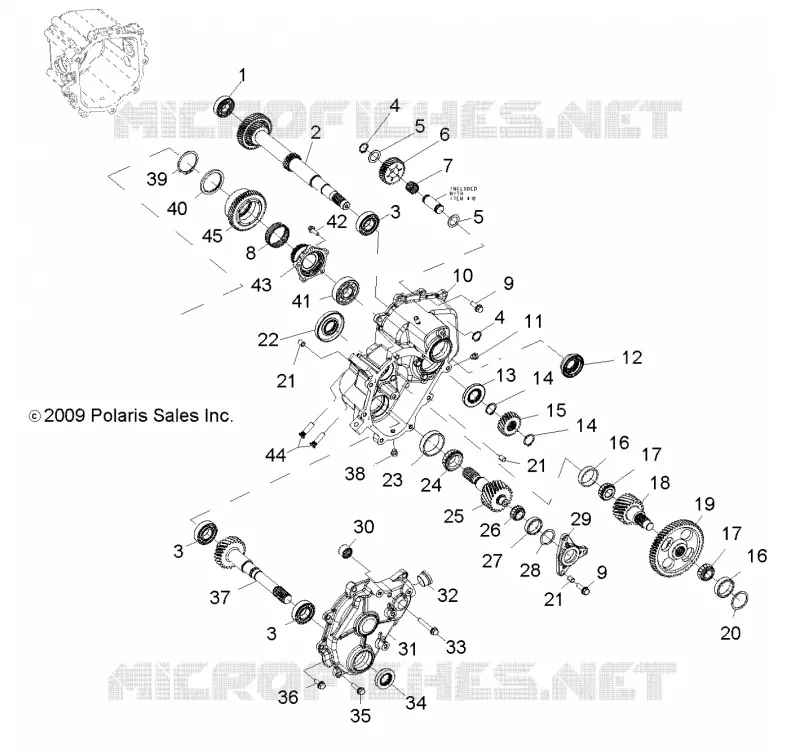

DRIVE TRAIN, MAIN GEARCASE INTL COMP 1 (BUILT 10/15/08 AND BEFORE)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE INTERNAL COMPONENTS
by
DRIVE TRAIN, MAIN GEARCASE INTL COMP 2 (BUILT 10/15/08 AND BEFORE)
DRIVE TRAIN, MAIN GEARCASE INTL COMP 1 (BUILT 10/15/08 AND BEFORE)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
-
1
2
3
3
3
4
4
5
5
6
7
8
9
9
10
11
12
13
14
14
15
16
16
17
17
18
19
20
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
11
39
40
41
42
43
44
45
-
Asm. Gearcase Complete
1332671
Not Available
1
Bearing Ball
3234549
$34,64 Unit Price incl. VAT
2
Asm. Gear Shaft/Pin
3234550
$976,49 Unit Price incl. VAT
3
Bearing Ball
3234502
$54,59 Unit Price incl. VAT
4
Ring Retaining
3234552
$13,64 Unit Price incl. VAT
5
Washer Thrust
3234878
$26,24 Unit Price incl. VAT
6
Gear Reverse 29T
3234554
Not Available
7
Bearing Needle
3234555
$34,64 Unit Price incl. VAT
8
Bearing Needle
3234536
$54,59 Unit Price incl. VAT
9
BOLT FLANGE HEX
7518172
$13,64 Unit Price incl. VAT
10
Asm Transmission/Transmission Case [Incl. 4 12 13 22 44]
3234863
Not Available
11
PLUG DRAIN
5133731
$20,99 Unit Price incl. VAT
12
Seal Oil
3234551
$73,49 Unit Price incl. VAT
13
Seal Oil
3234546
$73,49 Unit Price incl. VAT
14
Ring Retaining
3234547
$9,44 Unit Price incl. VAT
15
Gear Main Pinion
3234548
$173,24 Unit Price incl. VAT
16
Bearing Cup
3234556
$20,99 Unit Price incl. VAT
17
Bearing Cone
3234557
$33,59 Unit Price incl. VAT
18
Shaft Pinion 20T
3234558
$293,99 Unit Price incl. VAT
19
Gear Main Output
3234559
$362,24 Unit Price incl. VAT
20
Kit Shim
3234560
$99,74 Unit Price incl. VAT
21
Bushing Dowel
3234503
$12,59 Unit Price incl. VAT
22
SEAL OIL PINION
3610102
$57,74 Unit Price incl. VAT
23
Bearing Cup
3234562
$73,49 Unit Price incl. VAT
24
Bearing Cone
3234563
Not Available
25
Shaft Pinion 21T
3234564
$451,49 Unit Price incl. VAT
26
Bearing Cone
3234565
$33,59 Unit Price incl. VAT
27
Bearing Cup
3234566
$27,29 Unit Price incl. VAT
28
Kit Shim
3234567
$68,24 Unit Price incl. VAT
29
Cap Bearing Retainer
3234568
$87,66 Unit Price incl. VAT
30
Bearing Needle
3234561
$34,64 Unit Price incl. VAT
31
Asm. Cover Transmission [Incl. 34]
3234496
$535,49 Unit Price incl. VAT
32
PLUG FILL/CHECK
5133736
$47,24 Unit Price incl. VAT
33
Screw
3234571
$13,64 Unit Price incl. VAT
34
Seal Oil
3234570
$52,49 Unit Price incl. VAT
35
Screw
3234618
$17,84 Unit Price incl. VAT
36
Screw Flange
3234511
Not Available
37
Shaft Pinion 24T
3234569
$614,24 Unit Price incl. VAT
38
PLUG DRAIN
5133731
$20,99 Unit Price incl. VAT
39
Ring Retaining
3234879
$26,24 Unit Price incl. VAT
40
Plate Retaining
3234874
Not Available
41
Bearing Ball
3234545
$53,85 Unit Price incl. VAT
42
Screw
3234544
$10,49 Unit Price incl. VAT
43
Flange Park
3234877
Not Available
44
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
45
Gear Clutch Reverse 47T
3234542
3235290
$309,74 Unit Price incl. VAT
