1
Engine displacement
800
2
Year
2009
3
Trim
RZR 800 EFI ALL OPTIONS - R09VH76
4
Parts Catalog
FUEL TANK
5

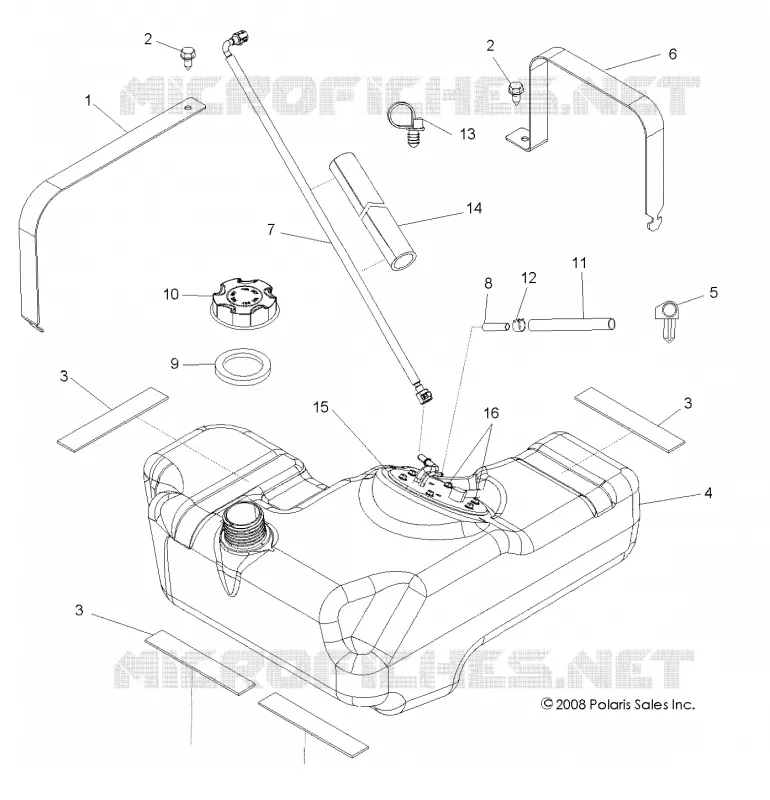

Parts Diagram
Parts Catalog
CHASSIS, CAB FRAME AND SIDE BARS
by
DRIVE TRAIN, FRONT GEARCASE INTERNAL COMPONENTS
FUEL TANK
1
Bracket Tank Rear
5250517
$37,16 Unit Price incl. VAT
2
SCR-1/4-20X.88 HXWR TAPR GR5 Y
7517312
$2,09 Unit Price incl. VAT
3
PAD-BATTERY NOT SHOWN
5810290
5810290-CO
$13,64 Unit Price incl. VAT
4
Asm. Fuel Pump
2521011
$729,74 Unit Price incl. VAT
4
Asm. Fuel Tank [Incl. 15 16 Pump]
2520914
Not Available
5
Clip Rosebud
4020149
$12,59 Unit Price incl. VAT
6
Bracket Tank Front
5250520
$38,42 Unit Price incl. VAT
7
Asm. Fuel Line Tank to Rail
2520933
$194,24 Unit Price incl. VAT
8
Line Fuel
83600653
Not Available
9
Gasket
5812123
$10,49 Unit Price incl. VAT
10
Cap Gas Tank
5433687
5450389
$36,74 Unit Price incl. VAT
11
Line Fuel [Vent]
8450003184
8450003-1525
$136,49 Unit Price incl. VAT
12
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
13
CABLE-TIE DIA10-50MM FIR-TREE
7081334
$3,14 Unit Price incl. VAT
14
Conduit Flex Hi Temp
836005466
$17,84 Unit Price incl. VAT
15
O-Ring
5413513
Not Available
16
SCREW-M5X.80X10-HX/FL-Y/D
7518045
$19,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
