ELECTRICAL, TURN SIGNALS AND LICENSE PLATE FOR SCRAMBLER 1000 TRACTOR FROM 2018

ELECTRICAL, SWITCHES, SENSORS, ECU AND CONTROL MODULES

ENGINE, AIR INTAKE

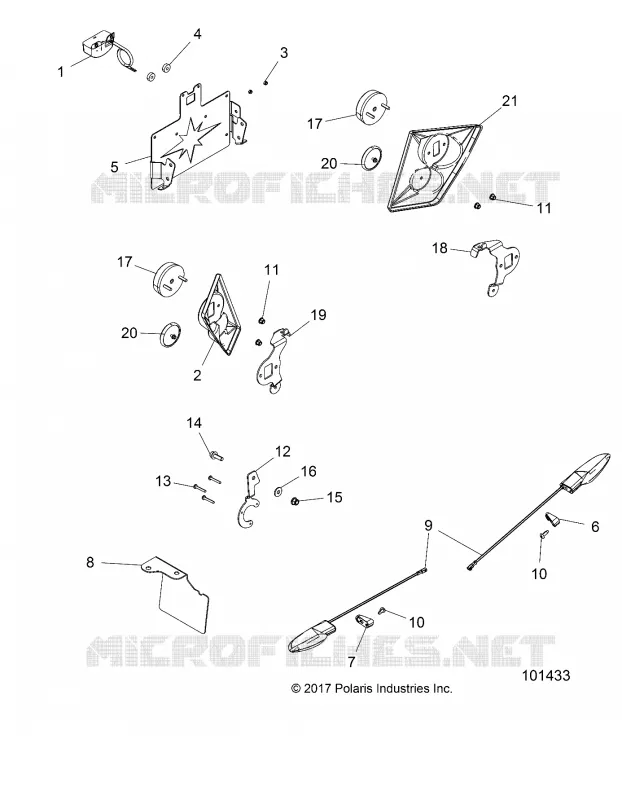

ELECTRICAL, TURN SIGNALS AND LICENSE PLATE

1

LIGHT-LICENSE PLATE TRACTR BLK

2413838

$152,24 Unit Price incl. VAT

2

PANEL-TAILLIGHT SCRM EU RH

5453666

Not Available

3

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

4

WASHER NYLON

7555932

$4,19 Unit Price incl. VAT

5

BRKT-RR LIC.PLATE SCRM TRC BLK

5264652458

Not Available

6

SUPPORT-FRONT SIGNAL SCRM LH

5416070

Not Available

7

SUPPORT-FRONT SIGNAL SCRM RH

5416071

Not Available

8

BRKT-VIN PLATE M.BLK

5261971458

Not Available

9

SIGNAL-TURN FRONT TR

2413531

Not Available

10

SCR-TXPH-M6X1.0X25 8.8 ZC

7519248

$6,29 Unit Price incl. VAT

11

NUT-M6 FLANGE NYLOC

7547274

$2,09 Unit Price incl. VAT

12

BRKT-TRAILER SOCKET M.BLK

5263450458

Not Available

13

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$9,44 Unit Price incl. VAT

14

BOLT-M8X1.25X25 HXFLG-OLIVE D

7518514

$3,14 Unit Price incl. VAT

15

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

16

WASHER-.327X.875X.090 FL-Y

7555960

$7,34 Unit Price incl. VAT

17

LIGHT-STOP TAIL TURN ECE LED

2413977

Not Available

18

BRKT-SCRM TAIL LIGHT LH M.BLK

5263175458

Not Available

19

BRKT-SCRM TAIL LIGHT RH M.BLK

5263176458

Not Available

20

REFLECTOR-RED CIRCLE WAS

5454243

Not Available

21

PANEL-TAILLIGHT SCRM EU LH

5453665

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
