1
Engine displacement
400
2
Year
1986
3
Trim
400-0860759
4
Parts Catalog

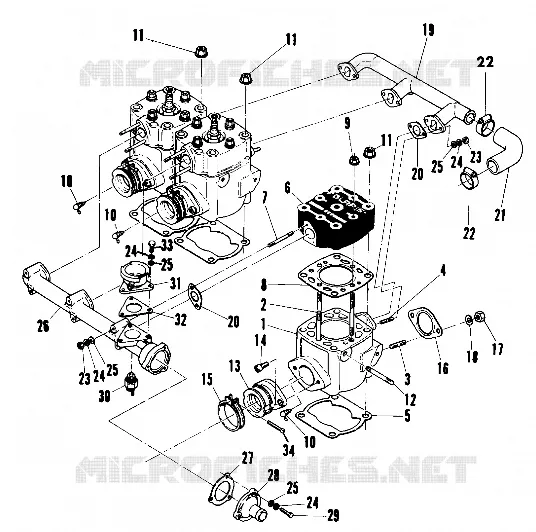

CYLINDER (600 AND 600 LE) (4910941094033A)
5
Parts Diagram
Parts Catalog
CYLINDER (400) (4910941094032A)
by
PISTON AND CRANKSHAFT (TRAIL) (4910941094034A)
CYLINDER (600 AND 600 LE) (4910941094033A)
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
23
24
24
24
24
25
25
25
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
23
24
24
24
24
25
25
25
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
23
24
24
24
24
25
25
25
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
23
24
24
24
24
25
25
25
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
23
24
24
24
24
25
25
25
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
23
24
24
24
24
25
25
25
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
23
24
24
24
24
25
25
25
25
26
27
28
29
30
31
32
33
34
1
CYLINDER (Incl. 1-4 10)
3083336
Not Available
2
STUD
3083392
Not Available
3
STUD
3083360
Not Available
4
STUD
3082931
Not Available
5
GASKET-CYL.
3082932
Not Available
6
HEAD CYL. [No Longer Available]
3083393
Not Available
7
STUD
3082934
$18,89 Unit Price incl. VAT
8
GASKET-HEAD
3083246
Not Available
9
NUT-FLANGE(10)
3082910
Not Available
10
VALVE CHECK Substituted by 3086785
3083337
7051020
$68,24 Unit Price incl. VAT
11
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
12
STUD Substituted by 3083360
3083074
Not Available
13
ADAPTER Substituted by 3084325
3083171
Not Available
14
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
15
ASM. BAND ADAPTOR [INCL. 9]
3083166
7082340
$36,74 Unit Price incl. VAT
16
GASKET EXHAUST Substituted by 3084439
3082510
Not Available
17
NUT(10)
3080285
Not Available
18
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
19
MANIFOLD WATER INLET
3083397
Not Available
20
GASKET(10)
3082937
Not Available
21
HOSE-MAIN
3082938
Not Available
22
CLAMP HOSE
3083394
Not Available
23
NUT(10)
3082939
Not Available
24
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
25
WASHER(10)
3080078
Not Available
26
OUTLET WATER MANIFOLD
3083338
Not Available
27
GASKET THERMOSTAT
3082944
Not Available
28
COVER THERMOSTAT CASE
3083475
Not Available
29
BOLT(10)
3083396
Not Available
30
SWITCH THERMAL(93 DEG.C.)
3083055
Not Available
31
NECK FILLER
3083398
Not Available
32
GASKET FILLER NECK
3083340
Not Available
33
BOLT&WASHER ASM.
3083361
Not Available
34
SCREW Substituted by 3081497
3083086
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
