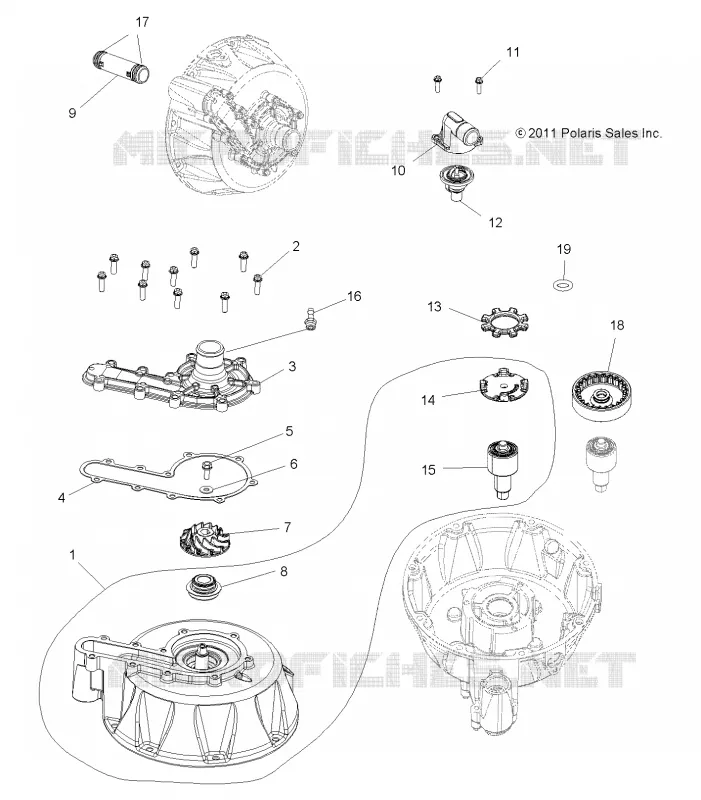

COOLING SYSTEM AND WATER PUMP FOR SPORTSMAN FOREST 850 - A12ZN8EFK/EFO FROM 2012

COOLING SYSTEM AND WATER PUMP

1

Asm. Stator Cover w/Water Pump [Incl. 2-8 14 15 Retainer Stator Wire Stator Cover Stator Fitting]]

1204236

Not Available

1

Kit Cover Stator w/Water Pump [Incl. 8 14 15]

2203939

Not Available

1

Asm. Stator Cover w/Water Pump [Incl. 2-8 14 15 Retainer Stator Wire Stator Cover Stator Fitting][Built 9/06/11 and After]

1204491

Not Available

2

SCREW

7518855

$5,24 Unit Price incl. VAT

3

COVER WATER PUMP W/BP [INCL. COVER FITTING GASKET]

5137326

$125,99 Unit Price incl. VAT

4

GASKET COVER

5412954

$57,74 Unit Price incl. VAT

5

BOLT

7518854

$5,24 Unit Price incl. VAT

6

WASHER FLAT

7556451

$9,44 Unit Price incl. VAT

7

IMPELLER WATER PUMP CAST

5632427

$78,74 Unit Price incl. VAT

8

SEAL

3610136

$131,24 Unit Price incl. VAT

9

TUBE WATER TRANSFER

5334925

$157,49 Unit Price incl. VAT

10

COVER-THERMOSTAT

5632606

$83,99 Unit Price incl. VAT

11

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$6,29 Unit Price incl. VAT

12

Thermostat

7052445

$83,99 Unit Price incl. VAT

13

Coupler Insert

5413433

Not Available

14

Coupler Water Pump Bearing

5136306

Not Available

15

BEARING W/SHAFT

3514633

Not Available

16

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

17

O-RING .864X1.00X.07

5412955

$13,64 Unit Price incl. VAT

18

COUPLER SPLINE INT WP BEARING

5137242

Not Available

19

O-RING

5414286

$3,14 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
