1
Engine displacement
570
2
Year
2016
3
Trim
sportsman-570-sp-eps-quad
4
Parts Catalog

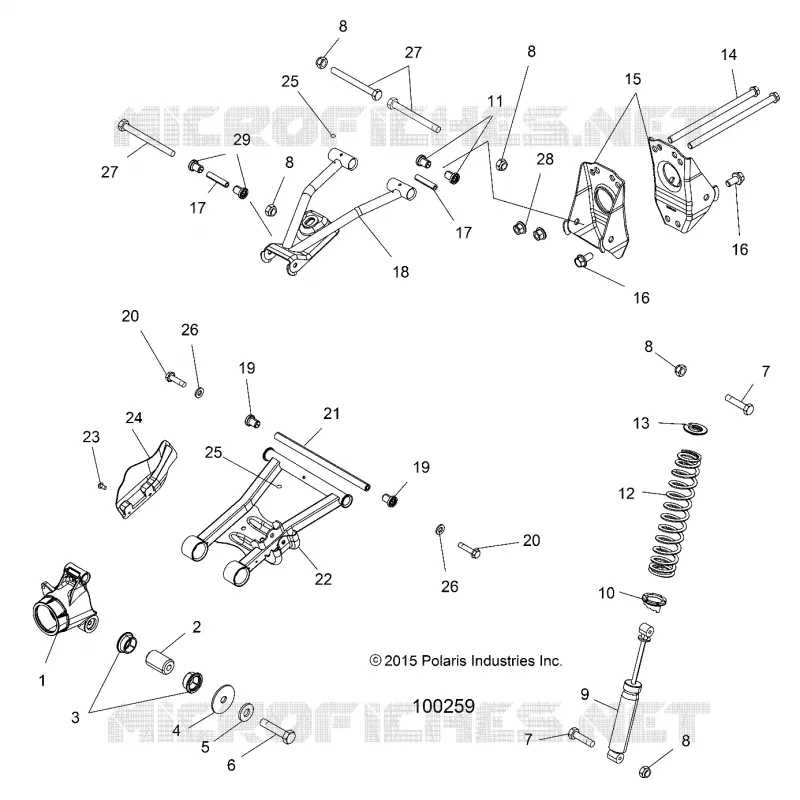

REAR SUSPENSION
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION
by
FRONT CAB SIDE PANELS
REAR SUSPENSION
10
29
12
13
14
15
16
16
17
17
18
18
29
29
20
20
21
22
22
23
24
24
25
25
25
26
27
27
28
29
1
CARRIER-BEARING WHEEL (MACH)
5135563
$121,79 Unit Price incl. VAT
2
BUSHING BEARING CARRIER
5632291
$41,99 Unit Price incl. VAT
3
BUSHING CONTROL LOWER BLACK
5438902
$8,39 Unit Price incl. VAT
4
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
5
WASHER LOCK
7552614
$3,14 Unit Price incl. VAT
6
Screw
7517873
$4,19 Unit Price incl. VAT
7
SCREW
7515415
$2,09 Unit Price incl. VAT
8
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
9
SHOCK REAR
7043100
$167,99 Unit Price incl. VAT
10
CAM-ADJUSTING SPRING STEEL
5253768
$68,24 Unit Price incl. VAT
11
ASM-BUSHING HD W/SEAL 6.75 FLG (HEAVY DUTY)
1543326
$24,14 Unit Price incl. VAT
12
SPRING-100# 11.3 FL M.BLK
7044453458
$89,24 Unit Price incl. VAT
13
RETAINER-SPRING STEEL
5251753
$19,94 Unit Price incl. VAT
14
BOLT-3/8-16X7 HX FLNG GR5-Y
7518365
$13,64 Unit Price incl. VAT
15
BRACKET CONTROL ARM PIVOT BLACK
5254267329
5273355-329
$83,99 Unit Price incl. VAT
16
SCR-3/8-16X3/4 HX FLNG-GR5-Y
7517632
$10,49 Unit Price incl. VAT
17
Shaft A-Arm. Short
5020826
$23,09 Unit Price incl. VAT
18
ARM CONTROL UPPER BLACK LH
1017747458
$115,49 Unit Price incl. VAT
18
ARM CONTROL UPPER BLACK RH
1017748458
$110,24 Unit Price incl. VAT
20
SCR-3/8-24X1 3/4 HX GR5 P30 Y [TO 9/9/2019]
7520340
7521149
$6,29 Unit Price incl. VAT
21
SHAFT-A-ARM C-BORE
5139929
$52,49 Unit Price incl. VAT
22
CONTROL LOWER MATTE BLACK LH
1015888458
$173,24 Unit Price incl. VAT
22
CONTROL LOWER MATTE BLACK RH
1015889458
$173,24 Unit Price incl. VAT
23
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
24
SHIELD CV REAR RH MATTE BLACK
5435009070
$47,24 Unit Price incl. VAT
24
SHIELD CV REAR LH MATTE BLACK
5435008070
$47,24 Unit Price incl. VAT
25
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
26
WASHER
7556153
$3,66 Unit Price incl. VAT
27
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
28
NUT-FLANGED 3/8-16 NYLON
7547180
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
