1
Engine displacement
925
2
Year
2017
3
Trim
RZR XP TURBO
4
Parts Catalog

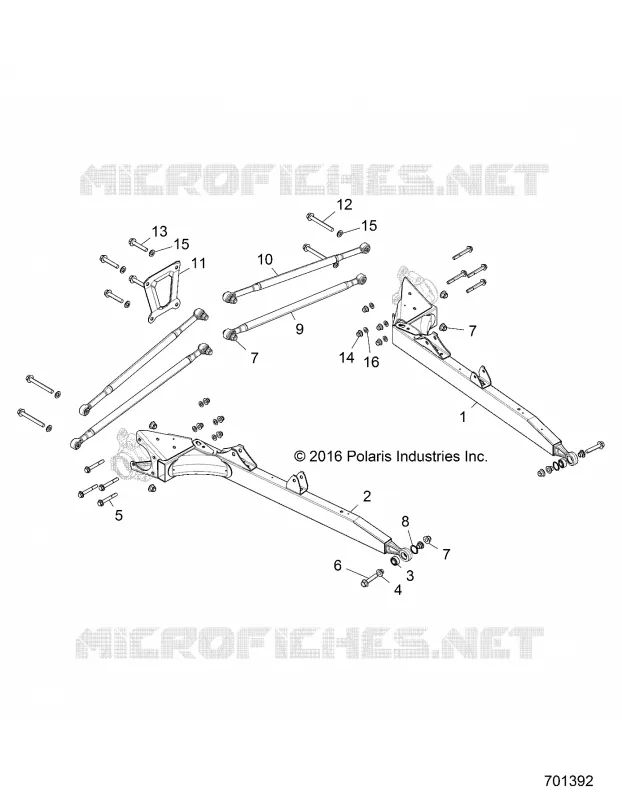

REAR SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
ENGINE, STATOR AND FLYWHEEL
by
SUSPENSION, REAR SHOCK
REAR SUSPENSION CONTROL ARMS
1
2
3
4
5
6
1
1
1
2
2
2
3
4
5
6
17
8
9
9
9
10
10
10
11
12
13
14
15
15
16
17
17
1
WELD-TRL ARM LH VELOCITY BLUE [AK][BK]
1019356689
$430,49 Unit Price incl. VAT
1
ARM TRAILING LH INDY RED
1019356293
$755,99 Unit Price incl. VAT
1
ARM TRAILING LH CLOUD SILVER [E99AF]
1019356385
$755,99 Unit Price incl. VAT
2
WELD-TRL ARM RH VELOCITY BLUE [AK][BK]
1019357689
$430,49 Unit Price incl. VAT
2
ARM TRAILING RH CLOUD SILVER [E99AF]
1019357385
$755,99 Unit Price incl. VAT
2
ARM TRAILING RH INDY RED
1019357293
$755,99 Unit Price incl. VAT
3
BEARING SPHERICAL
3514689
$68,24 Unit Price incl. VAT
4
BUSHING REDUCER
5336751
$12,59 Unit Price incl. VAT
5
SCREW M10x75 HXFL
7519286
$13,64 Unit Price incl. VAT
6
SCR-HXFL-M12X1.5X60 10.9 ZOD
7519138
$17,84 Unit Price incl. VAT
7
NUT-M12X1.5 FLG NYLOC-OLIVE D
7547334
$9,44 Unit Price incl. VAT
8
RING RETAINING(10)
7710437
$5,76 Unit Price incl. VAT
9
ASM-RADIUS ROD BTM VL BL [AB]
1543805689
1544029-689
$335,99 Unit Price incl. VAT
9
ASM-RADIUS ROD BTM RED [NK]
1543805293
1544029-293
$325,49 Unit Price incl. VAT
9
ASM-RADIUS ROD BTM CL SLV [NM]
1543805385
1544029-385
$335,99 Unit Price incl. VAT
10
ASM-RADIUS ROD RED [AK]
1543806293
1544030-293
$335,99 Unit Price incl. VAT
10
ASM-RADIUS ROD VL BL [AB]
1543806689
1544030-689
$325,49 Unit Price incl. VAT
10
ASM-RADIUS ROD CL SLV [AM]
1543806385
1544030-385
$325,49 Unit Price incl. VAT
11
PLATE-REAR BOLT BRACE M.BLK
5262630458
$73,49 Unit Price incl. VAT
12
SCR-HXFL-M12X1.5X105 10.9 ZOD
7520479
$13,64 Unit Price incl. VAT
13
SCR-HXFL-M12X1.5X65 10.9 ZOD
7520477
$6,08 Unit Price incl. VAT
14
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
15
WSHR-13.0X24.0X2.5 ZPC
7556287
$13,64 Unit Price incl. VAT
16
WASHER
7556153
$3,66 Unit Price incl. VAT
17
NUT-M12X1.5 FLG NYLOC-OLIVE D
7547334
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
