1
Engine displacement
500
2
Year
2008
3
Trim
SCRAMBLER 500 4X4 INTL - A08BG50FA
4
Parts Catalog

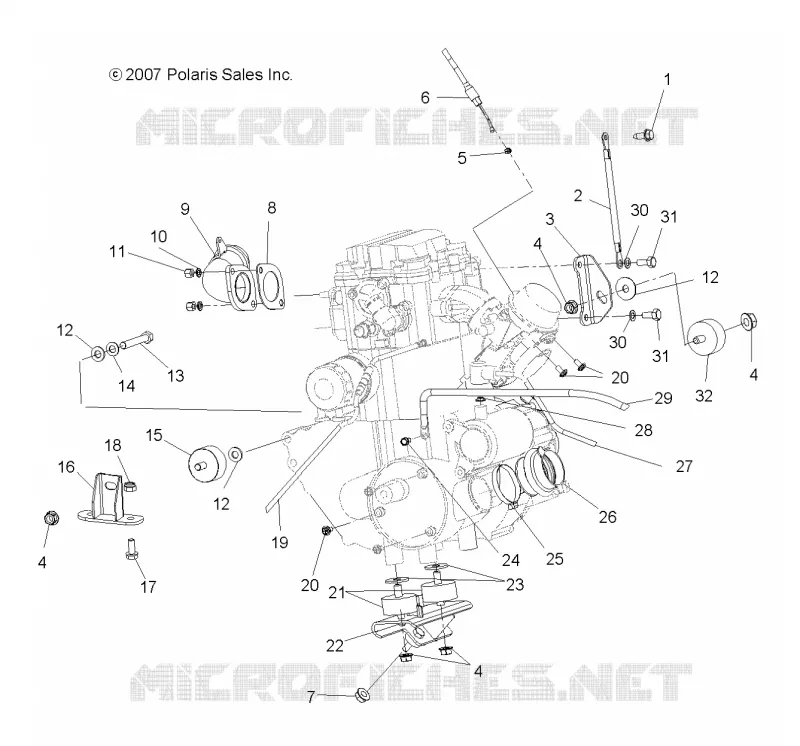

ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
LOWER CARBURETOR
by
ENGINE, OIL SYSTEM AND OIL FILTER
ENGINE, MOUNTING
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
30
31
31
32
1
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
2
CABLE GND-ENGINE
4010132
Not Available
3
Bracket Mount Engine Top
5242674
Not Available
4
NUT FLANGE LOCK
7547108
$9,44 Unit Price incl. VAT
5
GUIDE CABLE
3084696
$16,79 Unit Price incl. VAT
6
Cable Throttle
7081170
7080967
$104,99 Unit Price incl. VAT
7
Nut Flange Lock [To 9/01/03]
7547089
$9,44 Unit Price incl. VAT
8
GASKET EXH.
3085075
$73,49 Unit Price incl. VAT
9
Manifold Black
1261391489
$283,49 Unit Price incl. VAT
10
WASHER Substituted by 3080530
3080051
$6,29 Unit Price incl. VAT
11
Nut
3087199
Not Available
12
WASHER-.390X1.12X.060 FL-Y
7555823
$7,34 Unit Price incl. VAT
13
SCR-3/8-24X2 3/4HX HD CP GR5-Y
7515417
$9,44 Unit Price incl. VAT
14
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
15
Mount Motor
3110067
Not Available
16
Mount Engine
1040688067
Not Available
17
SCR-5/16-18X3/4 HX/FLG GR5-Y
7515398
$4,19 Unit Price incl. VAT
18
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
19
Cable Choke
7081177
$83,99 Unit Price incl. VAT
20
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
21
Isolator
3022072
Not Available
22
Mount Engine Rear Black
1014993067
$39,78 Unit Price incl. VAT
23
WASHER FLAT
7555815
$7,34 Unit Price incl. VAT
24
Bolt Flange
3084874
Not Available
25
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
26
Boot Clutch Intake (If built after 8/04/03)
5412487
Not Available
27
CABLE-21# SOL/START RED
4010093
$89,24 Unit Price incl. VAT
28
NUT FLANGE(10)
3083649
$7,34 Unit Price incl. VAT
29
Cable Battery/Engine
4010095
Not Available
30
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
31
Bolt
7512315
$9,44 Unit Price incl. VAT
32
ISOLATOR
3022071
3024012
$83,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
