1
Engine displacement
500
2
Year
2008
3
Trim
SCRAMBLER 500 4X4 INTL - A08BG50FA
4
Parts Catalog
FRONT SUSPENSION STRUT
5
Parts Diagram
Parts Catalog
SUSPENSION, A-ARM AND STRUT MOUNTING
by
CLUTCH COVER

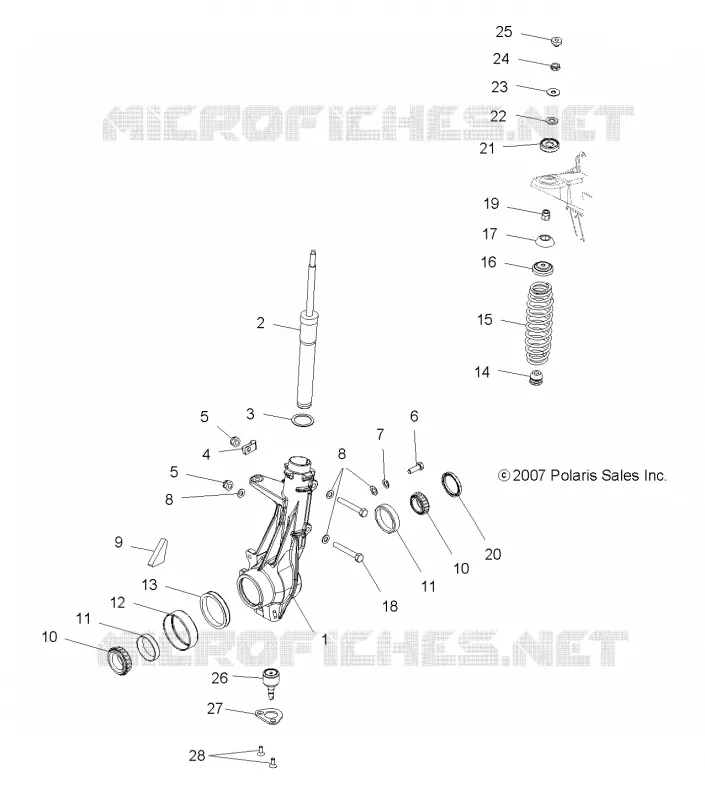

FRONT SUSPENSION STRUT
1
1
2
3
4
5
5
6
7
8
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Asm. Hubstrut RH [42mm][Incl. 9 11-13 20]
1822822
Not Available
1
Asm. Hubstrut LH [42mm][Incl. 9 11-13 20]
1822821
Not Available
2
STRUT-FRONT 18X30MM 184.7MM LT
7041762
$230,99 Unit Price incl. VAT
3
WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]
5211115
$7,34 Unit Price incl. VAT
4
CLAMP-CABLE
7080367
$4,19 Unit Price incl. VAT
5
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
6
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
7
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
8
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
9
RETAINER WIRE STRUT CAST
5810439
Not Available
10
BEARING TAPERED ROLLER
3554509
$40,94 Unit Price incl. VAT
11
BRG TAPER ROLL CUP
3554507
$54,59 Unit Price incl. VAT
12
SLEEVE STRUT HUB SEAL
5222193
$120,74 Unit Price incl. VAT
13
Coil Magnetic
2410133
2201313
$241,49 Unit Price incl. VAT
14
BUMPER-MCU 17.8MM ID
5412665
$12,59 Unit Price incl. VAT
15
Spring Compression Red
7041603293
Not Available
16
RETAINER-SPRING STRUT
5243364
$36,74 Unit Price incl. VAT
17
PIVOT-BALL BOTTOM DELRIN
5432871
$19,94 Unit Price incl. VAT
18
SCR-HH-5/16-18X2.25 GR5 ZY3
7515339
$9,44 Unit Price incl. VAT
19
SPACER-1/2-20 STRUT
5132062
$36,74 Unit Price incl. VAT
20
SEAL HUB STRUT
3610028
$57,74 Unit Price incl. VAT
21
PIVOT-BALL TOP DELRIN
5432872
$19,94 Unit Price incl. VAT
22
SPACER-RUBBER
5810291
$7,34 Unit Price incl. VAT
23
WSHR-.500X1.50-12GA-Y
7555749
$2,09 Unit Price incl. VAT
24
NUT-1/2-20 NYLOK THIN HT-Y
7547104
$2,09 Unit Price incl. VAT
25
GROMMET-FLANGED .36X.56X1.06
7052028
$11,54 Unit Price incl. VAT
26
BALL-JOINT GREASELESS STRUT
7061158
7061306
$52,49 Unit Price incl. VAT
27
BRACKET-BALL JOINT
5211121
$62,99 Unit Price incl. VAT
28
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
