1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 TOURING EPS EUN
4
Parts Catalog
BODY, FRONT CAB & SIDE PANELS
5
Parts Diagram
Parts Catalog
FRONT BUMPER AND MOUNTING
by
FUEL TANK ASM.

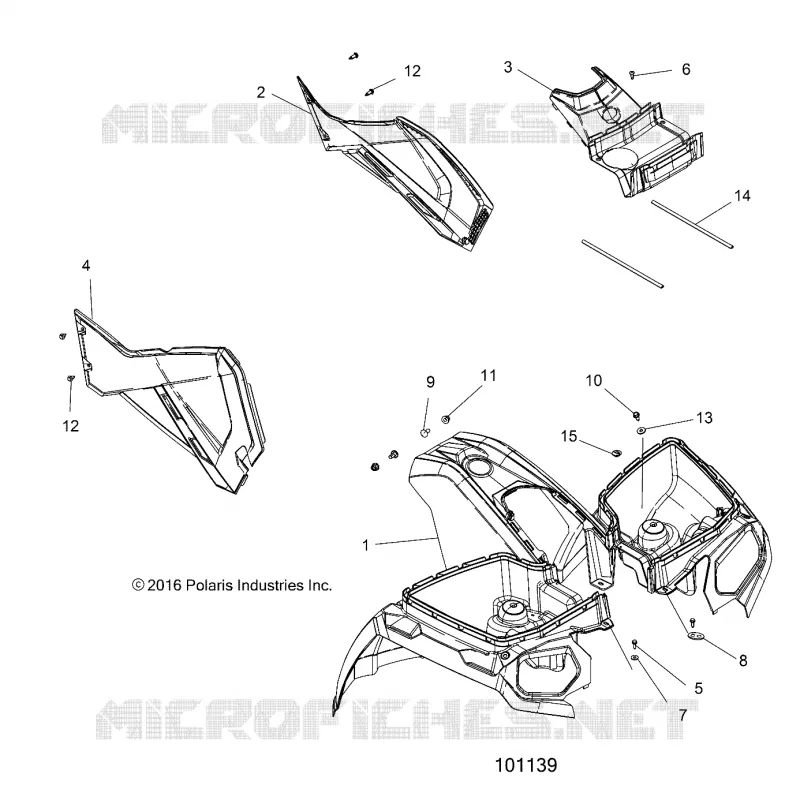

BODY, FRONT CAB & SIDE PANELS
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
1
ASM. CAB FRONT SAGEBRUSH GREEN [INCL. WARNING DECALS] [F1]
2635675498
$587,99 Unit Price incl. VAT
2
PANEL-SIDE LH ROUTER SB GREEN [F1] [C1]
5454893498
$561,74 Unit Price incl. VAT
3
COVER FRONT SAGE BRUSH GREEN METALLIC [F1] [C1]
5439069498
$188,99 Unit Price incl. VAT
4
ASM. PANEL/SHIELD RH SAGE BRUSH GREEN METALLIC [F1] [C1] [INCL. 3-5]
2636442498
$482,99 Unit Price incl. VAT
5
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
6
SCR-TX TRUSS-#14X3/4 HI/LO ZBK
7519045
$6,29 Unit Price incl. VAT
7
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
8
BRACKET PLUG MOUNT
5258497
$10,49 Unit Price incl. VAT
9
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
10
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
11
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
12
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
13
WASHER-.327X.875X.090 FL-Y
7555960
$7,34 Unit Price incl. VAT
14
SEAL-BULB 30 CENTIMETERS
552169730
$3,14 Unit Price incl. VAT
15
PLUG-COMPARTMENT
5412981
5418084
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
