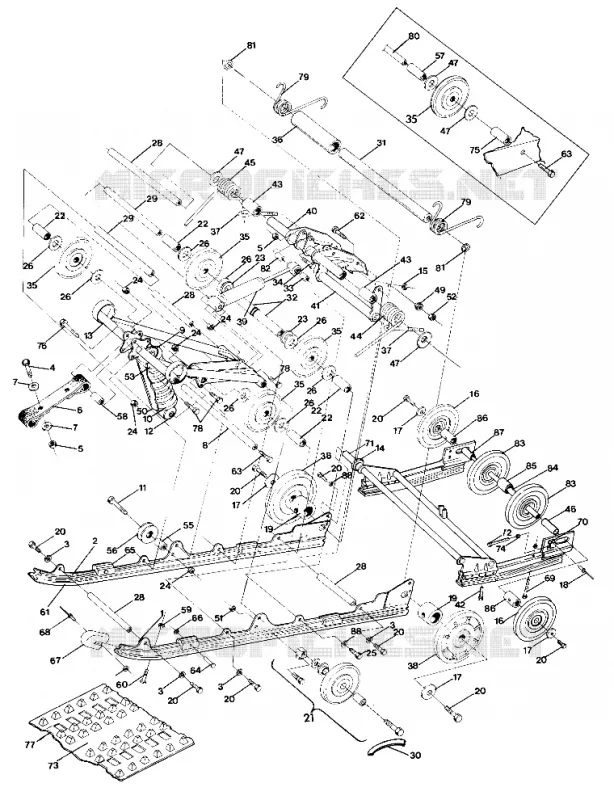

SUSPENSION UPDATED 2/90 (4917871787015A) FOR SWE WIDE TRAK

DRIVE CLUTCH (4917871787012A)

CRANKCASE (4917871787023A)

RAIL ASM LH (Incl. 64-66)

1540647

Not Available

RAIL ASM RH (Incl. 64-66)

1540648

Not Available

WASHER-SPRING-LOCK

7552603

$1,56 Unit Price incl. VAT

SCR-5/16-18X1-HX/FLG-GR5-Y

7515307

$7,34 Unit Price incl. VAT

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

STRAP LIMITER

5410397

Not Available

WASHER-.328X1.25X16GA FL-Y

7555716

$3,14 Unit Price incl. VAT

SHAFT MOUNTING

5020554

Not Available

RETAINER SPRING COIL

5220225

$19,94 Unit Price incl. VAT

RETAINER-SPRING

5210953

$11,54 Unit Price incl. VAT

BOLT Substituted by 7515491

7515433

$3,14 Unit Price incl. VAT

SHOCK-SUSP

7041142

Not Available

ARM FR.TORQUE Substituted by 1540649-067

1540649

Not Available

WASHER(10)

7555801

$7,34 Unit Price incl. VAT

NUT FLEX LOC (10)

7542402

$11,54 Unit Price incl. VAT

WHEEL IDLER OUTER RED (400 650 Only)

1594039

Not Available

WASHER FLAT(10)

7555732

Not Available

RIVET

7621501

$4,19 Unit Price incl. VAT

SPACER Substituted by 5330151-067

5330151

5330171-067

$27,29 Unit Price incl. VAT

BOLT(10) Substituted by 7512492

7515458

7512492

$2,09 Unit Price incl. VAT

ASM. WHEEL CARRIER [INCL. INSERTS]

1543021

Not Available

SPACER-.792 X1.010 X1.35

5333012

$20,99 Unit Price incl. VAT

RING RETAINING

7713401

7710436

$9,44 Unit Price incl. VAT

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

BOLT(10)

7515502

$10,49 Unit Price incl. VAT

BUSHING-.781 X1.250X.060-Y

7556301

$6,29 Unit Price incl. VAT

SHAFT PIVOT ARM FR. Substituted by 5020718

5020551

Not Available

SHAFT Substituted by 5020720

5020555

$52,49 Unit Price incl. VAT

CABLE TIE

7080356

$4,19 Unit Price incl. VAT

SHAFT IDLER Substituted by 5020726

5020553

$62,99 Unit Price incl. VAT

SPACER SHAFT

5020563

Not Available

SPACER

5332631

$11,54 Unit Price incl. VAT

SCR-HH-5/16-18X1.75 GR5 ZY3

7512329

$7,34 Unit Price incl. VAT

WHEEL IDLER

1543018

$115,49 Unit Price incl. VAT

TUBE CTR IDLER SPACER Substituted by 5333014-067

5333014

$68,24 Unit Price incl. VAT

BOLT EYE

7080221

$17,84 Unit Price incl. VAT

WHEEL IDLER

1594031

Not Available

SHOCK [Cannot Purchase as Assembly]

1540661

Not Available

ARM R.TORQUE Substituted by 1540651-067

1540651

Not Available

ARM REAR PIVOT Substituted by 1540652-067

1540652

$115,49 Unit Price incl. VAT

SCR-1/4-20X1 1/4-TRIRD HX WH-Y

7512242

$4,19 Unit Price incl. VAT

TUBE

5431171

Not Available

SPRING LH R.SUSP. Substituted by 7041239-067

7041239

$204,74 Unit Price incl. VAT

SPRING RH R.SUSP. Substituted by 7041240-067

7041240

7041240-329

$141,74 Unit Price incl. VAT

SPACER R.IDLER SIDE

5333037

Not Available

WASHER FLAT

7555726

$3,14 Unit Price incl. VAT

NUT SHOULDER

7542326

$36,74 Unit Price incl. VAT

SHIELD SPRING

5430671

$47,24 Unit Price incl. VAT

Nut

7542403

Not Available

NUT LOCK

7542302

$7,34 Unit Price incl. VAT

SPRING-SHOCK SUSP

7041140

Not Available

SPACER

5332787

Not Available

ROLLER-SPRING

5430540

Not Available

SPACER INNER CARRIER Substituted by 5333020-067

5333020

$34,64 Unit Price incl. VAT

BUSHING SUSPENSION

5010212

Not Available

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

SCREW

7512227

$6,29 Unit Price incl. VAT

SLIDER BLUE(2) Substituted by 5521461-107

5521322

Not Available

SLIDE RED (HIFAX) Substituted by 5521321 (Blk) (Trail)

5521104

5521452

$73,49 Unit Price incl. VAT

BOLT

7515317

$9,44 Unit Price incl. VAT

BOLT(10)

7515432

Not Available

RIVET (50)

7661609

Not Available

BUMPER-SUSPENSION Substituted by 5810554

5410315

$15,74 Unit Price incl. VAT

PALNUT(10)

7670009

$4,19 Unit Price incl. VAT

COVER RAIL TIP

5430627

$62,99 Unit Price incl. VAT

RIVET

7621435

$2,09 Unit Price incl. VAT

BLOCK IDLER BOLT ADJUSTING

5130530

$62,99 Unit Price incl. VAT

SHAFT PIVOT ARM Substituted by 5020725

5020548

$52,49 Unit Price incl. VAT

TRACK (WIDETRAK) Substituted by 5411040

5410550

Not Available

NUT-3/8-16-Y

7542404

$3,14 Unit Price incl. VAT

SPACER OUTER CARRIER Substituted by 5333019-067

5333019

5333019-067

$27,29 Unit Price incl. VAT

BOLT

7515438

$9,44 Unit Price incl. VAT

CLIP METAL(YOKOHAMA) (10) (TRAIL)

5222109

Not Available

SCREW

7515415

$2,09 Unit Price incl. VAT

SPRING REAR EXT. Substituted by 7041231-067

7041231

$99,74 Unit Price incl. VAT

SHAFT MTG CARRIER

5020558

Not Available

BUSHING

5430537

$7,34 Unit Price incl. VAT

WHEEL IDLER Substituted by 1594079-070

1594021

Not Available

SHAFT R.IDLER Substituted by 5020717

5020552

Not Available

SPACER R.IDLER INNER

5333013

Not Available

SPACER-IDLER-OUTER

5332641

Not Available

PIVOT SWING ARM ASM. Substituted by 1541133

1540640

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
