1
Engine displacement
400
2
Year
1995
3
Trim
SPORT 400L - W958540
4
Parts Catalog

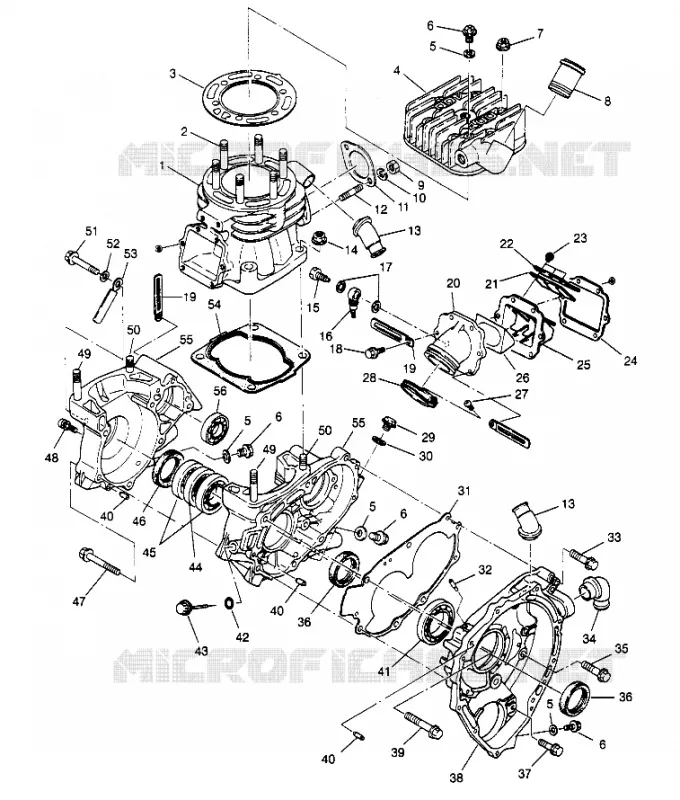

CRANKCASE AND CYLINDER SPORT 400L W958540 (4930133013C008)
5
Parts Diagram
Parts Catalog
TOOL KIT ASSEMBLY SPORT 400L W958540 (4930133013C007)
by
PISTON CRANKSHAFT SPORT 400L W958540 (4930133013C010)
CRANKCASE AND CYLINDER SPORT 400L W958540 (4930133013C008)
1
2
3
4
5
5
5
5
6
6
6
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
40
40
41
42
43
44
45
46
47
48
49
49
50
50
51
52
53
54
55
55
56
1
CYLINDER (Incl. 2 12 13)
3084728
Not Available
2
STUD
3084138
Not Available
3
GASKET HEAD (Head)
3084731
Not Available
4
HEAD CYLINDER Substituted by 3086755 (Incl. 8)
3084730
Not Available
5
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
6
PLUG DRAIN
3083767
Not Available
7
NUT-FLANGE(10)
3082910
Not Available
8
PIPE WATER (Water)
3083452
Not Available
9
NUT(10)
3080285
Not Available
10
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
11
GASKET EXHAUST Substituted by 3084439
3084017
Not Available
12
STUD (10)
3080016
$9,23 Unit Price incl. VAT
13
PIPE 1 ELBOW Substituted by 3086746 (Elbow)
3084129
Not Available
14
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
15
BOLT-BANJO
3083137
Not Available
16
VALVE CHECK
3083894
Not Available
17
WASHER(10) Substituted by 7555998
3083138
7555998
$2,09 Unit Price incl. VAT
18
BOLT FLANGE Substituted by 3086759 (Adapter)
3084145
Not Available
19
CLAMP
3083590
$7,34 Unit Price incl. VAT
20
ADAPTER
3084143
Not Available
21
VALVE REED(10)
3240064
Not Available
22
STOPPER
3240065
Not Available
23
SCREW&WASHER Substituted by 3084565
3240066
Not Available
24
GASKET REED VALVE (10) (Reed Valve)
3084148
Not Available
25
VALVE ASM. REED
3084147
Not Available
26
STUFFER (REED VALVE ASM.)
3240164
$15,95 Unit Price incl. VAT
27
SCREW
3081497
$4,19 Unit Price incl. VAT
28
BAND ASM. (Adapter)
3084144
Not Available
29
PLUG Substituted by 3086749
3083453
Not Available
30
GASKET
3082956
$9,44 Unit Price incl. VAT
31
GASKET (CASE 3) Substituted by 3086748
3084727
Not Available
32
PIPE BREATHER (Breather)
3084128
Not Available
33
BOLT FLANGE Substituted by 3086751
3084177
Not Available
34
PIPE 2 ELBOW Substituted by 3086747
3084130
Not Available
35
BOLT FLANGE (10)
3084435
Not Available
36
SEAL OIL
3084120
Not Available
37
BOLT FLANGE
3084126
Not Available
38
CRANKCASE ASM #3 Substituted by 3085278
3085081
Not Available
39
BOLT FLANGE
3084134
Not Available
40
PIN DOWEL Substituted by 3086838
3080103
$13,64 Unit Price incl. VAT
41
BEARING BALL
3084131
Not Available
42
O-RING
3084733
Not Available
43
GAUGE OIL Substituted by 3085517 (Incl. 42)
3084732
Not Available
44
BEARING BALL
3084775
$74,54 Unit Price incl. VAT
45
BEARING BALL
3084121
$68,24 Unit Price incl. VAT
46
SEAL OIL
3084725
Not Available
47
BOLT FLANGE Substituted by 3086742
3084125
Not Available
48
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
49
STUD
3084118
Not Available
50
STUD
3084119
$17,84 Unit Price incl. VAT
51
BOLT FLANGE
3084124
Not Available
52
WASHER(10)
3080142
Not Available
53
CLAMP
3083384
Not Available
54
GASKET CYLINDER
3084729
$89,24 Unit Price incl. VAT
55
CRANKCASE ASM. Substituted by 3086740
3084774
Not Available
56
BEARING BALL
3084123
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
