1
Engine displacement
0
2
Year
1998
3
Trim
WIDETRAK LX - 0982065
4
Parts Catalog
GEARCASE WIDETRAK LX 0982065 AND EUROPEAN WIDETRAK LX E982065 (4943884388B011)
5
Parts Diagram
Parts Catalog
SUSPENSION WIDETRAK LX 0982065 AND EUROPEAN WIDETRAK LX E982065 (4943884388B009)
by
EXHAUST SYSTEM WIDETRAK LX 0982065 AND EUROPEAN WIDETRAK LX E982065 (4943884388C003)

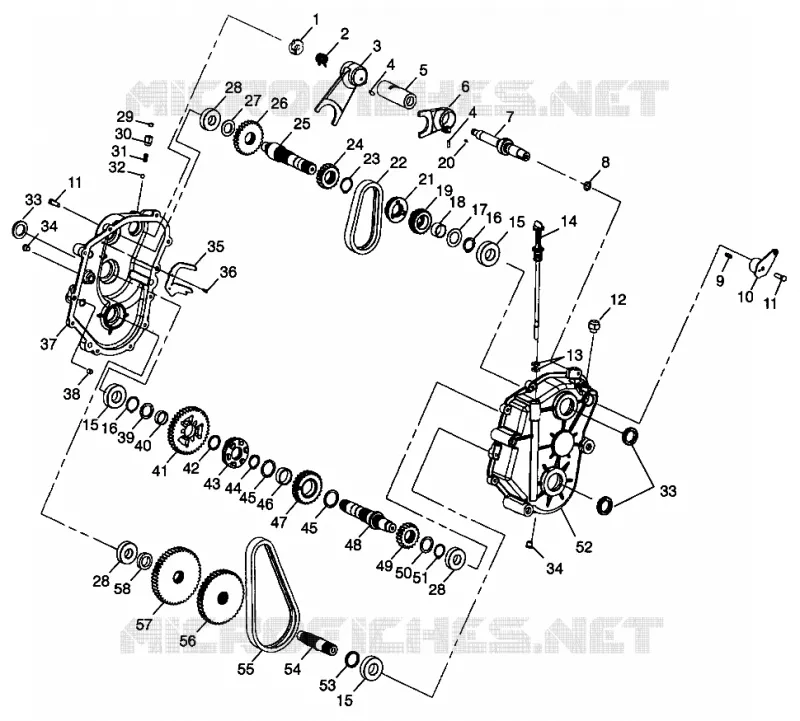

GEARCASE WIDETRAK LX 0982065 AND EUROPEAN WIDETRAK LX E982065 (4943884388B011)
-
GEARCASE ASM W.T. BASIC HV (Incl. 1-58)
1341233
Not Available
1
INDEX SHIFT
3233402
$58,47 Unit Price incl. VAT
2
SPRING TORSION
3233474
$10,70 Unit Price incl. VAT
3
FORK SHIFT
3233503
$220,49 Unit Price incl. VAT
4
PIN DOWELL
3233375
Not Available
5
DRUM SHIFT
3233504
Not Available
6
FORK SHIFT HIGH
3233505
Not Available
7
SHAFT SHIFT
3233403
$293,99 Unit Price incl. VAT
8
O-RING
5410440
$8,39 Unit Price incl. VAT
9
KEY (3/16 X 1/4)
3233414
Not Available
10
BELLCRANK WTD
3233393
$79,47 Unit Price incl. VAT
11
SCREW
3233026
$12,59 Unit Price incl. VAT
12
SWITCH
3233410
$44,82 Unit Price incl. VAT
13
O-RING
5410675
$3,14 Unit Price incl. VAT
14
DIPSTICK Substituted by 1332143
5431419
1332143
$89,24 Unit Price incl. VAT
15
BEARING
3233019
$54,59 Unit Price incl. VAT
16
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
17
WASHER THRUST
3233468
$29,39 Unit Price incl. VAT
18
BEARING NEEDLE
3233383
Not Available
19
SPROCKET 19T [NOTE: MUST ORDER WITH REF. 5]
3233509
$225,74 Unit Price incl. VAT
20
KEY (1/8 X 1/4)
3233415
7710608
$6,29 Unit Price incl. VAT
21
DOG ENGAGEMENT [NOTE: MUST ORDER WITH REF. 9]
3233470
$167,99 Unit Price incl. VAT
22
CHAIN SILENT (.75W 40P)
3233508
3222166
$194,24 Unit Price incl. VAT
23
RING RETAINING
3233424
Not Available
24
SPROCKET 19T
3233507
$62,99 Unit Price incl. VAT
25
SHAFT INPUT
3233506
$351,74 Unit Price incl. VAT
26
GEAR 27T
3233419
$188,99 Unit Price incl. VAT
27
SPACER
3233416
$9,23 Unit Price incl. VAT
28
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
29
SCREW SET
3233374
Not Available
30
DETENT EXTENSION
3233405
$18,36 Unit Price incl. VAT
31
SPRING DETENT SHIFTER
7041483
$83,99 Unit Price incl. VAT
32
BALL DETENT
7080310
$10,49 Unit Price incl. VAT
33
SEAL DUAL LIP
3610134
$73,49 Unit Price incl. VAT
34
PLUG
7052115
$10,49 Unit Price incl. VAT
35
DEFLECTOR OIL
3233406
Not Available
36
SCREW Substituted by 3233747
3233033
Not Available
37
GEARCASE RH
3233502
$279,29 Unit Price incl. VAT
38
PIPE KNOCK
3233021
Not Available
39
WASHER
3233099
Not Available
40
BEARING NEEDLE 25 X 29 X 10
3233103
$54,59 Unit Price incl. VAT
41
GEAR 39T
3233511
$209,99 Unit Price incl. VAT
42
WASHER
3233105
$13,64 Unit Price incl. VAT
43
DOG ENGAGEMENT L/R
3233512
$173,24 Unit Price incl. VAT
44
RING RETAINING
3233377
$6,29 Unit Price incl. VAT
45
WASHER THRUST 1.187 X 1.500 X .0600
3233378
$17,84 Unit Price incl. VAT
46
BEARING-NEEDLE 30X35X13-CAGED
3233384
$54,59 Unit Price incl. VAT
47
SPROCKET 25T
3233513
$120,74 Unit Price incl. VAT
48
SHAFT REVERSE
3233514
$225,74 Unit Price incl. VAT
49
GEAR 18T
3233515
Not Available
50
SPACER
3233381
Not Available
51
RING RETAINING
3233516
$2,61 Unit Price incl. VAT
52
GEARCASE LH
3233510
Not Available
53
SPACER
3233418
Not Available
54
SHAFT OUTPUT
3233521
$272,99 Unit Price incl. VAT
55
CHAIN SILENT (.75W 66P)
3233520
3221113
$194,24 Unit Price incl. VAT
56
SPROCKET 41T 15T SPLINE
3233519
$167,99 Unit Price incl. VAT
57
GEAR 47T
3233518
$257,24 Unit Price incl. VAT
58
SPACER
3233517
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
