1
Engine displacement
0
2
Year
1998
3
Trim
WIDETRAK LX - 0982065
4
Parts Catalog
STEERING WIDETRAK LX 0982065 AND EUROPEAN WIDETRAK LX E982065 (4943884388B005)
5
Parts Diagram
Parts Catalog
STEERING
by
DRIVE SHAFT WIDETRAK LX 0982065 AND EUROPEAN WIDETRAK LX E982065 (4943884388B013)

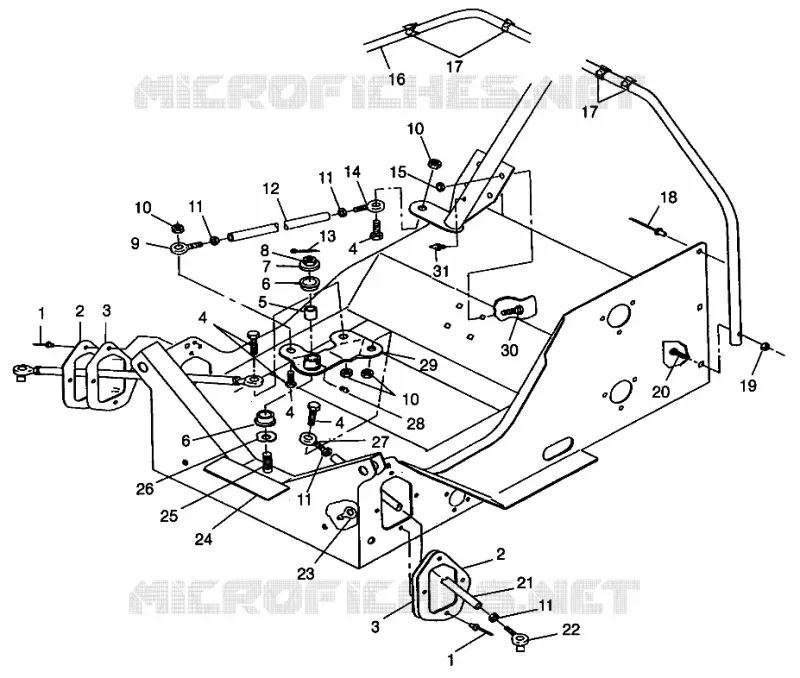

STEERING WIDETRAK LX 0982065 AND EUROPEAN WIDETRAK LX E982065 (4943884388B005)
1
RIVET-POP 5/32(.251-.375)-ST-B
7621323
$2,09 Unit Price incl. VAT
2
PLATE BOOT SEAL
5222942067
$19,94 Unit Price incl. VAT
3
BOOT TIE ROD
5410761
$26,24 Unit Price incl. VAT
4
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
5
BUSHING
5010340
Not Available
6
BUSHING
3563907
$7,34 Unit Price incl. VAT
7
WASHER
7555721
$2,09 Unit Price incl. VAT
8
NUT FLEX (10)
7542703
Not Available
9
ROD END LH
7060166
$99,74 Unit Price incl. VAT
10
Nut
7542403
Not Available
11
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
11
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
12
ROD-DRAG LINK
5332712
Not Available
13
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
14
ROD END RH
7060167
$99,74 Unit Price incl. VAT
15
NUT FLEX-LOC(10)
7542303
$11,54 Unit Price incl. VAT
16
HOOP STEERING BLK.
1011819067
Not Available
17
CLIP(10)
7080278
$4,71 Unit Price incl. VAT
18
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
19
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
20
BOLT-CARRIAGE(10)
7512275
$7,34 Unit Price incl. VAT
21
ROD TIE BLK (RMK)
5020878067
5020878
$73,49 Unit Price incl. VAT
22
ROD END RH
7060174
$99,74 Unit Price incl. VAT
23
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
24
BLOCK-STEERING CAST
5630563
$62,99 Unit Price incl. VAT
25
SCREW
7512682
Not Available
26
WASHER-WAVE 7/8X1X.010
7555735
$7,34 Unit Price incl. VAT
27
ROD END LH.
7060164
$99,74 Unit Price incl. VAT
28
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
29
STRG.ASM CTR.
1822217
$115,49 Unit Price incl. VAT
30
SCR-RHCAR-5/16-18X0.75GR5ZY3
7517428
$4,19 Unit Price incl. VAT
31
FITTING LUB/VEN(10)
7080561
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
