1
Engine displacement
900
2
Year
2018
3
Trim
RANGER CREW XP 900 6 SEAT BASE / EPS
4
Parts Catalog

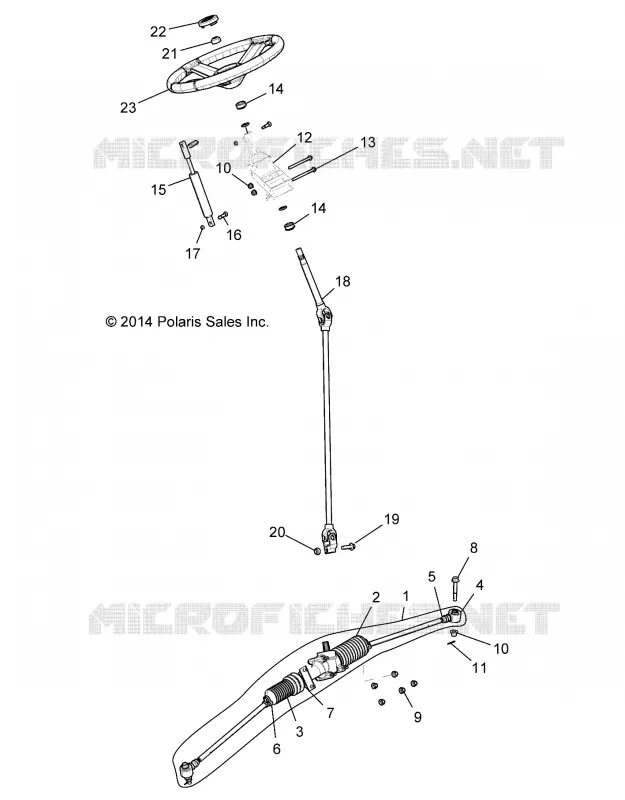

STEERING (NON EPS)
5
Parts Diagram
Parts Catalog
REFERENCES, TOOL KIT AND OWNERS MANUALS
by
WHEELS, REAR
STEERING (NON EPS)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
1
ASM. GEAR BOX STEERING [INCL. 1-7 23]
1823902
$1 018,49 Unit Price incl. VAT
2
BOOT DRIVERS SIDE RACK
5412012
$115,49 Unit Price incl. VAT
3
BOOT PASSENGER SIDE RACK
5412013
$104,99 Unit Price incl. VAT
4
ROD END [INCL. 1]
7061054
7061138
$104,99 Unit Price incl. VAT
5
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
6
BELLOWS CLAMP SMALL
7082150
$12,59 Unit Price incl. VAT
7
CLAMP LARGE BELLOWS
7080979
$10,49 Unit Price incl. VAT
8
SCR-HXFL-M10X1.25X65 10.9 ZY3
7517909
$10,49 Unit Price incl. VAT
9
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
10
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
11
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
12
ASM-TILT STEERING RVTD M10 BLK [INCL.10]
1824420458
$283,49 Unit Price incl. VAT
13
BOLT-M10X1.25X130 HXFLG-OLIVED
7518665
$25,19 Unit Price incl. VAT
14
BUSHING-STEERING
7556675
$24,14 Unit Price incl. VAT
15
ASM-SHOCK OIL LOCKING MACH
7044098
$178,49 Unit Price incl. VAT
16
SCR-SH-M6X1.0X11 12.9 ZB SHB
7519980
$13,64 Unit Price incl. VAT
17
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
18
SHAFT STEERING UPPER/LOWER
1823844
$346,49 Unit Price incl. VAT
19
SCR-M10X1.50X35 HX/FL
7518644
$9,44 Unit Price incl. VAT
20
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
21
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
22
CAP STEERING WHEEL [ED4FA/ED4DA][SD4CA]
5438865
$9,44 Unit Price incl. VAT
23
WHEEL-STEERING 14# [ED4FA/ED4DA][SD4CA]
1823622
$246,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
