BRAKES, BRAKE FRONT BRAKE CALIPER (FROM 8/16/2021) FOR SPORTSMAN 570 EPS EU 3PC FROM 2022

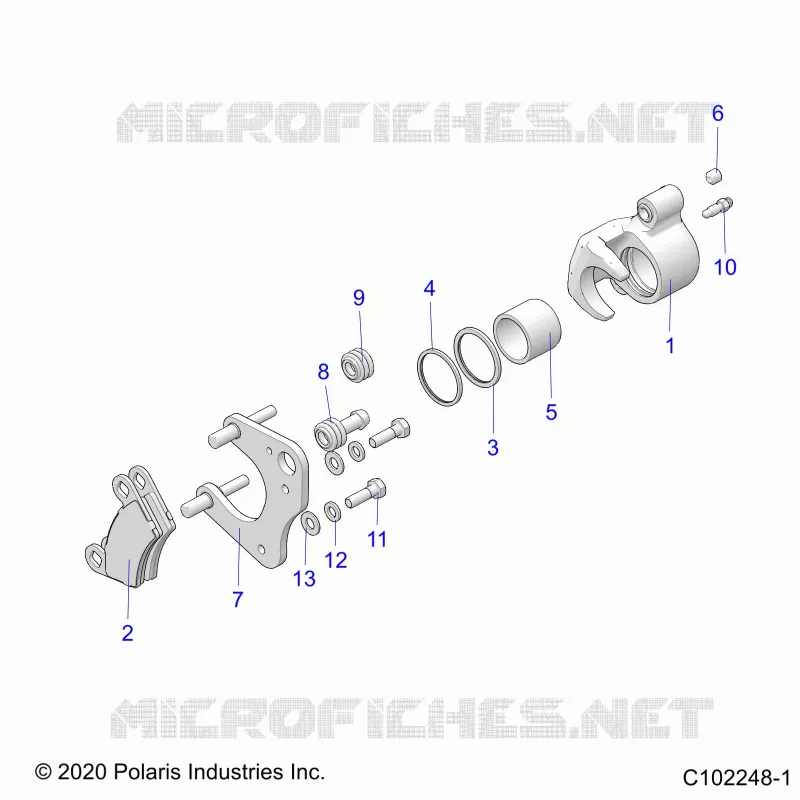

BRAKES, BRAKE FRONT BRAKE CALIPER (FROM 8/16/2021)

1

ASM-CALIPER BRAKE 1.25# LH [INCL. 1-10]

1914145

Not Available

1

ASM-CALIPER BRAKE 1.25# RH [INCL. 1-10]

1914146

Not Available

2

K-ASM HD PAD BRK S. BORE [OPTION][2 PADS PER KIT]

2208935

$104,99 Unit Price incl. VAT

2

KIT-BRAKE PAD ASM FRONT [INCL. 2 PADS]

2202412

$98,16 Unit Price incl. VAT

3

SEAL-CALIPER INNER 1.25#

5411596

$7,34 Unit Price incl. VAT

4

SEAL-CALIPER INNER 1.25#

5411596

$7,34 Unit Price incl. VAT

5

PISTON-CALIPER 1.25

5132405

$62,99 Unit Price incl. VAT

6

SCR-M10X1.0X8 SOC SET-OD

7518863

$17,84 Unit Price incl. VAT

7

ASM-CALIPER MNT FRONT 1.500

1910513

$99,74 Unit Price incl. VAT

8

BOOT-PIN BUSHING

5412505

$6,29 Unit Price incl. VAT

9

BOOT-PIN SEAL

5412506

$6,29 Unit Price incl. VAT

10

SCR-M7X1.0 BLEEDER OLIVE D

7081343

$10,49 Unit Price incl. VAT

11

SCREW CAP(10) [CALIPER MOUNTING]

7512365

$2,09 Unit Price incl. VAT

12

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

13

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
