1
Engine displacement
900
2
Year
2015
3
Trim
RANGER XP 900 ALL OPTIONS
4
Parts Catalog

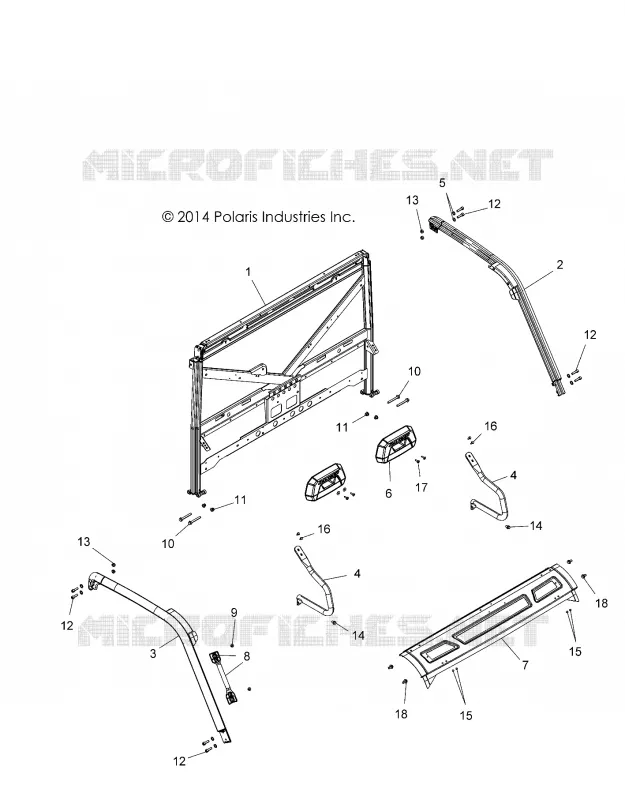

CHASSIS, CAB FRAME
5
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
CHASSIS, MAIN FRAME
CHASSIS, CAB FRAME
1
2
3
4
4
5
6
7
8
9
10
10
11
11
12
12
12
12
13
13
14
14
15
15
16
16
17
18
18
1
2
3
4
5
6
7
8
8
9
10
10
11
11
12
12
13
13
14
14
15
15
16
17
17
18
1
FRAME CAB REAR MATTE BLACK
1019750458
$1 963,49 Unit Price incl. VAT
2
FRAME CAB FRONT LH MATTE BLACK
1018082458
$645,74 Unit Price incl. VAT
3
FRAME CAB FRONT RH MATTE BLACK
1018083458
$645,74 Unit Price incl. VAT
4
HIP BOLSTER MATTE BLACK
1019524458
$194,24 Unit Price incl. VAT
5
WASHER
7555923
$4,19 Unit Price incl. VAT
6
HEADREST BLACK
5439110070
$120,74 Unit Price incl. VAT
7
PLATE WINDSHIELD MOUNT UPPER MATTE BLACK
5255166458
$404,24 Unit Price incl. VAT
8
HANDLE-GRAB ROPS BLK
5450844070
$62,99 Unit Price incl. VAT
9
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
10
SCR-HXFL-M10X1.25X80 8.8 ZOD
7519363
7528444
$4,19 Unit Price incl. VAT
11
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
12
SCR-SH-M10X1.5X35 8.8 ZPB
7519959
$3,14 Unit Price incl. VAT
13
NUT-NYLOCK M10X1.5 REF 0600110
7547268
$2,09 Unit Price incl. VAT
14
SCR-HXFL-M8X1.25X16 8.8 ZPB D5
7517956
$14,69 Unit Price incl. VAT
15
PLUG FENDER REAR
7671178
$3,66 Unit Price incl. VAT
16
SCR-TXTH-M6X1.0X25 ZFB
7519650
$7,34 Unit Price incl. VAT
17
RIVET-POP 3/16 (.376-.500) AL-LFB
7621460
$2,09 Unit Price incl. VAT
18
SCR-HXFL-M10X1.5X20 8.8 Z NYL
7518460
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
