1
Engine displacement
650
2
Year
1990
3
Trim
650 RXL - 0900768
4
Parts Catalog

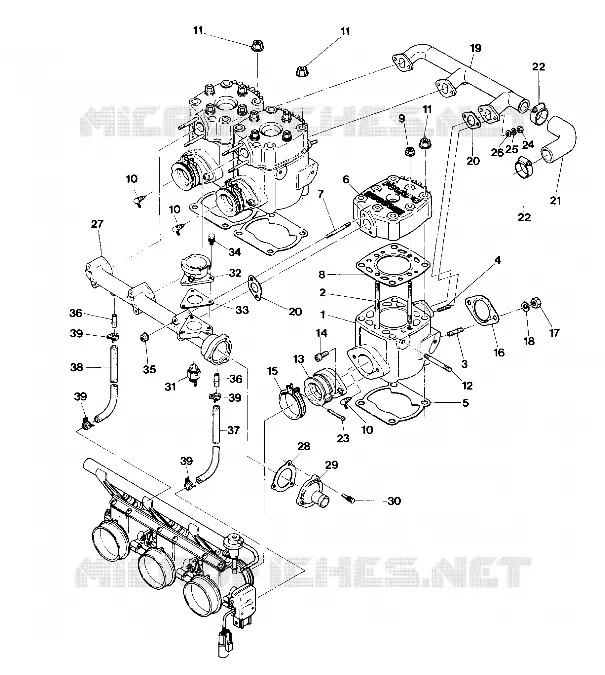

CYLINDER MANIFOLD (4918391839024A)
5
Parts Diagram
Parts Catalog
BRAKE CHAINCASE (4918391839017A)
by
PISTON AND CRANKSHAFT (4918391839025A)
CYLINDER MANIFOLD (4918391839024A)
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
39
39
39
1
CYLINDER Substituted by 3084320 (Incl. 1-4 10)
3084040
Not Available
2
STUD
3083392
Not Available
3
STUD (10)
3080016
$9,23 Unit Price incl. VAT
4
STUD
3082931
Not Available
5
GASKET CYLINDER Substituted by 3084614
3084041
Not Available
6
HEAD CYLINDER
3084042
$570,14 Unit Price incl. VAT
7
STUD
3082934
$18,89 Unit Price incl. VAT
8
GASKET HEAD Substituted by 3084376
3083852
Not Available
9
NUT-FLANGE(10)
3082910
Not Available
10
VALVE CHECK Substituted by 3086785
3083337
7051020
$68,24 Unit Price incl. VAT
11
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
12
STUD Substituted by 3083360
3083074
Not Available
13
ADAPTER
3084043
Not Available
14
BOLT
3084044
Not Available
15
BAND ASM. (Incl. Bolt)
3084045
$47,24 Unit Price incl. VAT
16
GASKET EXHAUST Substituted by 3083770
3084046
Not Available
17
NUT(10)
3080285
Not Available
18
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
19
MANIFOLD WATER INLET
3083397
Not Available
20
GASKET(10)
3082937
Not Available
21
HOSE-MAIN
3082938
Not Available
22
CLAMP HOSE
3083394
Not Available
23
SCREW
3081497
$4,19 Unit Price incl. VAT
24
NUT(10)
3082939
Not Available
25
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
26
WASHER(10)
3080078
Not Available
27
OUTLET W.MANIFOLD
3084047
Not Available
28
GASKET THERMOSTAT
3082944
Not Available
29
COVER THERMOSTAT
3083854
Not Available
30
BOLT&WASHER ASM.(10)
3083855
Not Available
31
SWITCH THERMAL(93 DEG.C.)
3083055
Not Available
32
NECK FILLER Substituted by 3083398
3083339
Not Available
33
GASKET FILLER NECK
3083340
Not Available
34
BOLT&WASHER ASM.
3083361
Not Available
35
NUT FLANGE
3083856
$4,19 Unit Price incl. VAT
36
PIPE WATER (Water)
3084048
Not Available
37
HOSE WATER (Water)
3084049
Not Available
38
HOSE #2 (WATER) (Water)
3084050
Not Available
39
CLAMP
3084051
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
