1
Engine displacement
0
2
Year
1994
3
Trim
LITE DELUXE - 0943431
4
Parts Catalog

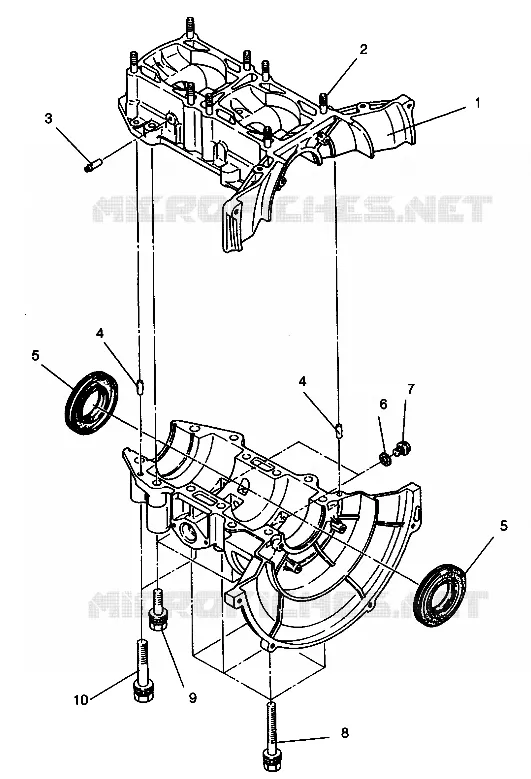

CRANKCASE ASSEMBLY LITE 0943433 AND LITE DELUXE 0943431 (4924992499031A)
5
Parts Diagram
Parts Catalog
OIL TANK AIR BOX STARLITE 0943427 (4924992499030A)
by
CRANKCASE AND CYLINDER STARLITE 0943427 (4924992499032A)
CRANKCASE ASSEMBLY LITE 0943433 AND LITE DELUXE 0943431 (4924992499031A)
1
CRANKCASE (Incl. 2-7)
3083980
Not Available
2
STUD
3083564
Not Available
3
PIPE PULSE
3083798
7052145
$17,84 Unit Price incl. VAT
4
PIN DOWEL(10) Substituted by 3080103
3083054
$13,64 Unit Price incl. VAT
5
SEAL OIL(10)
3083045
$62,99 Unit Price incl. VAT
6
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
7
BOLT FLANGE(10) Substituted by 3087035
3083568
7520710
$7,34 Unit Price incl. VAT
8
BOLT W/WASHER
3080739
$11,54 Unit Price incl. VAT
9
BOLT&WASHER ASM.
3083566
Not Available
10
BOLT
3083565
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
