1
Engine displacement
0
2
Year
1994
3
Trim
LITE DELUXE - 0943431
4
Parts Catalog
CYLINDER LITE 0943433 AND LITE DELUXE 0943431 (4924992499033A)
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM STARLITE 0943427 (4924992499028A)
by
RECOIL STARTER ASSEMBLY STARLITE 0943427 (4924992499034A)

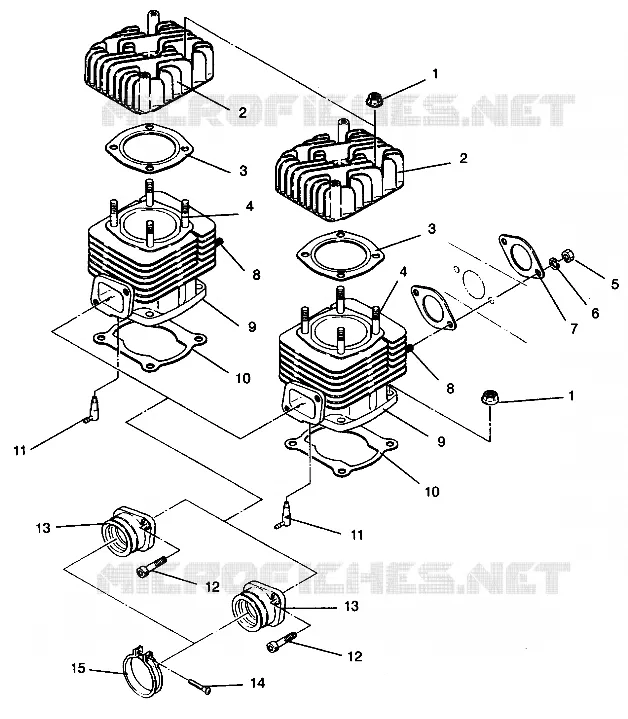

CYLINDER LITE 0943433 AND LITE DELUXE 0943431 (4924992499033A)
1
NUT-FLANGE(10)
3082910
Not Available
2
HEAD CYLINDER
3083573
$179,54 Unit Price incl. VAT
3
GASKET HEAD Substituted by 3085844
3084021
Not Available
4
STUD
3080283
$26,24 Unit Price incl. VAT
5
NUT(10)
3080285
Not Available
6
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
7
PISTON
3083023
Not Available
8
STUD (10)
3080016
$9,23 Unit Price incl. VAT
9
CYLINDER (Incl. 2-4)
3083570
$820,04 Unit Price incl. VAT
10
GASKET CYL. Substituted by 3085843
3084022
Not Available
11
VALVE CHECK Substituted by 3086785
3083337
7051020
$68,24 Unit Price incl. VAT
12
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
13
ADAPTER
3083576
Not Available
14
SCREW
3081497
$4,19 Unit Price incl. VAT
15
BAND-CARB MTG. (Incl. 19)
3082257
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
