Parts Catalog
FRONT SUSPENSION AND SKI XLT SP 0966676 AND EUROPEAN XLT SP E966676 (4931703170B002)
5
Parts Diagram
Parts Catalog
MASTER CYLINDER XLT SP 0966676 AND EUROPEAN XLT SP E966676 (4931703170B001)
by
DRIVE TRAIN XLT SP 0966676 AND EUROPEAN XLT SP E966676 (4931703170B009)

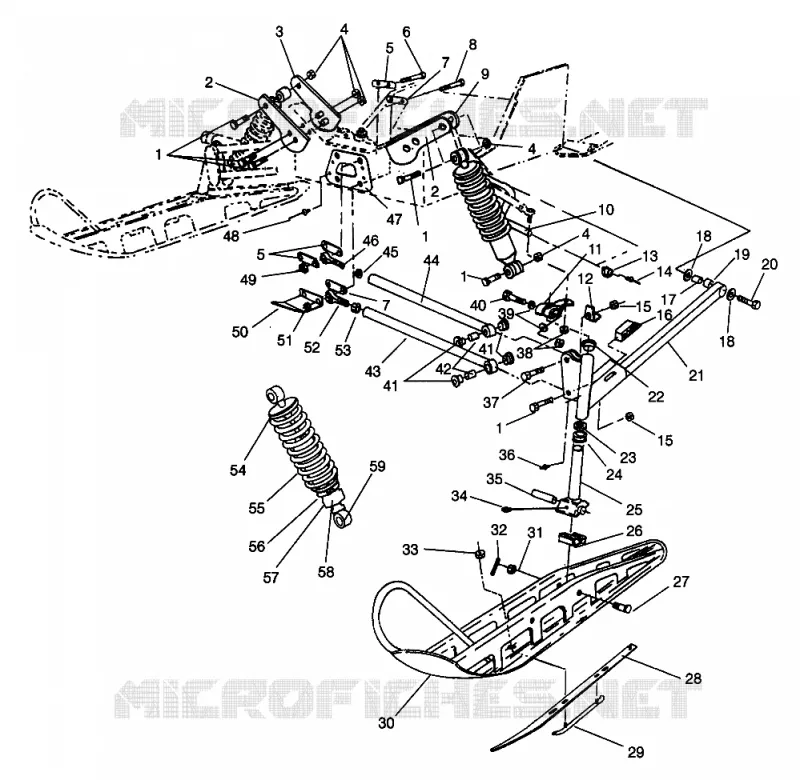

FRONT SUSPENSION AND SKI XLT SP 0966676 AND EUROPEAN XLT SP E966676 (4931703170B002)
1
BOLT(10) Substituted by 7515415
7515515
$2,09 Unit Price incl. VAT
2
PLATE SHOCK MT.EXT BLK.
5211449067
Not Available
3
MT RH SHOCK EXT.BLK.
1012053067
Not Available
4
NUT NYLOC(10)
7542453
7542439
$2,09 Unit Price incl. VAT
5
STRAP-SPACER TOP
5211344
$13,64 Unit Price incl. VAT
6
BOLT(10)
7512551
Not Available
7
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
8
BOLT
7512678
$36,74 Unit Price incl. VAT
9
MT LH SHOCK EXT.BLK.
1012052067
Not Available
10
BAR SWAY LT 5/8 FITTED
5224680067
Not Available
11
ARM STEERING
5241244067
Not Available
12
STOP LH STEERING
5241207067
Not Available
12
STOP RH STEERING
5241208067
Not Available
13
BUSHING SWAYBAR (Trail Special Only)
5410386
Not Available
14
RIVET(50) Substituted by 7661130
7661643
7661130
$2,09 Unit Price incl. VAT
15
NUT FLEXLOC B(10) Substituted by 7542403
7542456
Not Available
16
SLIDE SWAYBAR 5/8# LT
5431736
Not Available
17
PIVOT RUBBER
5410872
$15,74 Unit Price incl. VAT
18
WASHER
7555721
$2,09 Unit Price incl. VAT
19
BUSHING
5010310
$19,94 Unit Price incl. VAT
20
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
21
ARM TRLG LH (XLT) (Incl. 17 19)
1822288
Not Available
21
ARM TRLG RH. (Incl. 17 19)
1822289
Not Available
22
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
23
BUSHING
7556509
$3,14 Unit Price incl. VAT
24
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
25
SPINDLE BLK.
6230073067
Not Available
26
STOP RUBBER
5521276
Not Available
27
BOLT(10)
7515462
$15,74 Unit Price incl. VAT
28
PLATE SKAG
1011829067
$74,54 Unit Price incl. VAT
29
SKAG BLK.
1820318067
$68,24 Unit Price incl. VAT
30
SKI WELD BLK
1820332067
Not Available
30
SKI
1820366067
Not Available
31
NUT CASTLE(10) Substituted by 7542438
7542457
7542438
$3,14 Unit Price incl. VAT
32
PIN COTTER(10) Substituted by 7661205
7661209
7661205
$1,56 Unit Price incl. VAT
33
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
34
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
35
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
36
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
37
DESC NOT_AVAILABLE
7515530
Not Available
38
NUT FLEXLOC B(10) Substituted by 7542403
7542456
Not Available
39
WASHER(10) Substituted by 7555832
7555851
7555832
$4,19 Unit Price incl. VAT
40
BOLT(10) Substituted by 7517583
7515491
7515433
$3,14 Unit Price incl. VAT
41
BUSHING-RAD ROD PIVOT
5432074
Not Available
42
BUSHING RAD.ROD UPP/LOWER
5010356
Not Available
43
ROD RAD.LOW BLK.
1822293067
Not Available
44
ROD RAD.UP BLK.
1822295067
Not Available
45
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
46
ROD END RH Substituted by 7061010
7060155
Not Available
47
BRACE BLKHD/STRG BLK.
5211589067
Not Available
48
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
49
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
50
BRACE PAN
5223997067
Not Available
51
NUT FLEX (10)
7542703
Not Available
52
ROD END RH Substituted by 7061011
7060156
7061071
$99,74 Unit Price incl. VAT
53
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
54
RETAINER SPRING SLOTTED
5020618
$36,74 Unit Price incl. VAT
55
SPRING COMP .BLK.
7041396067
Not Available
56
RING RETAINING(10)
7710424
Not Available
57
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
58
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
59
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
